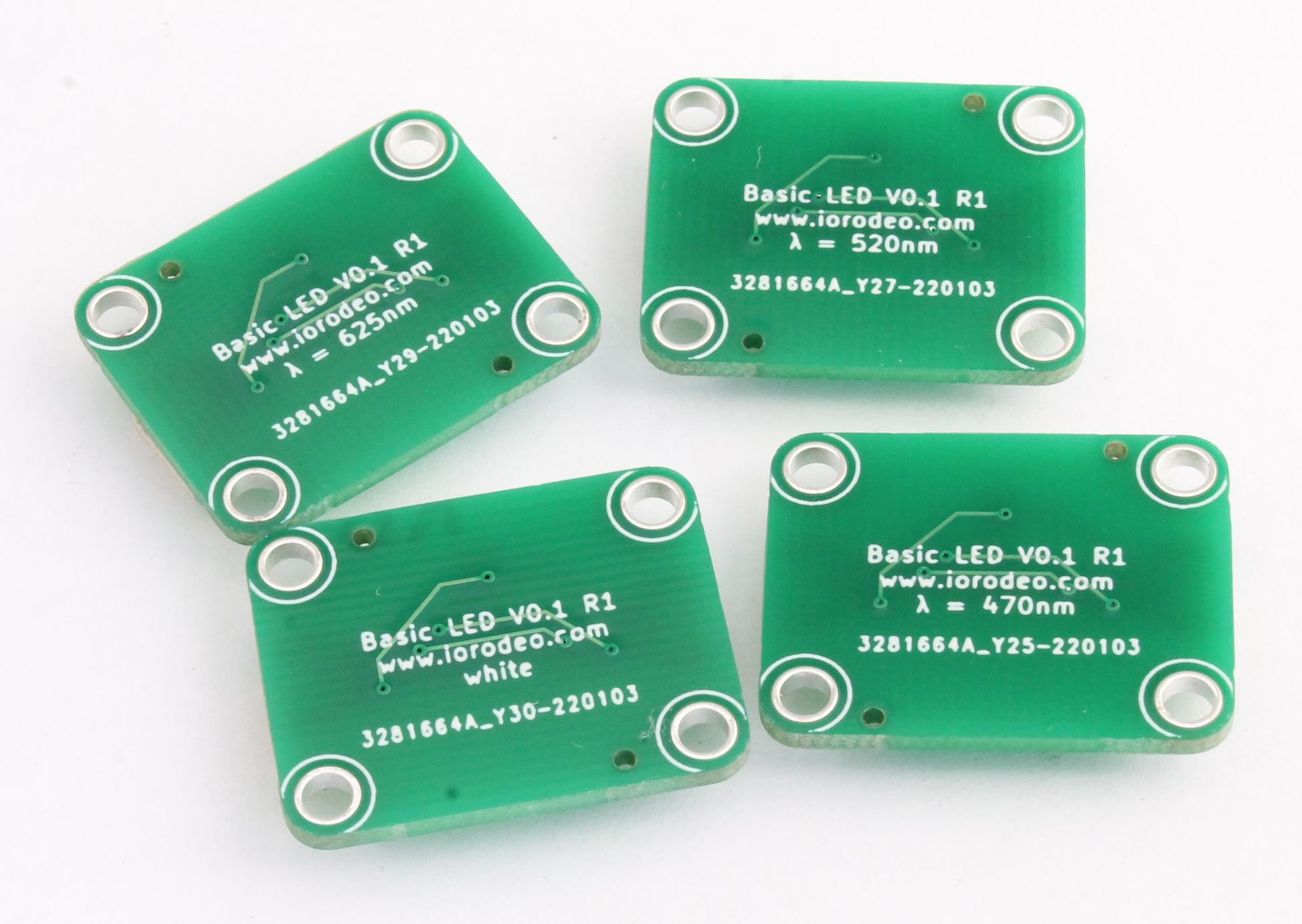

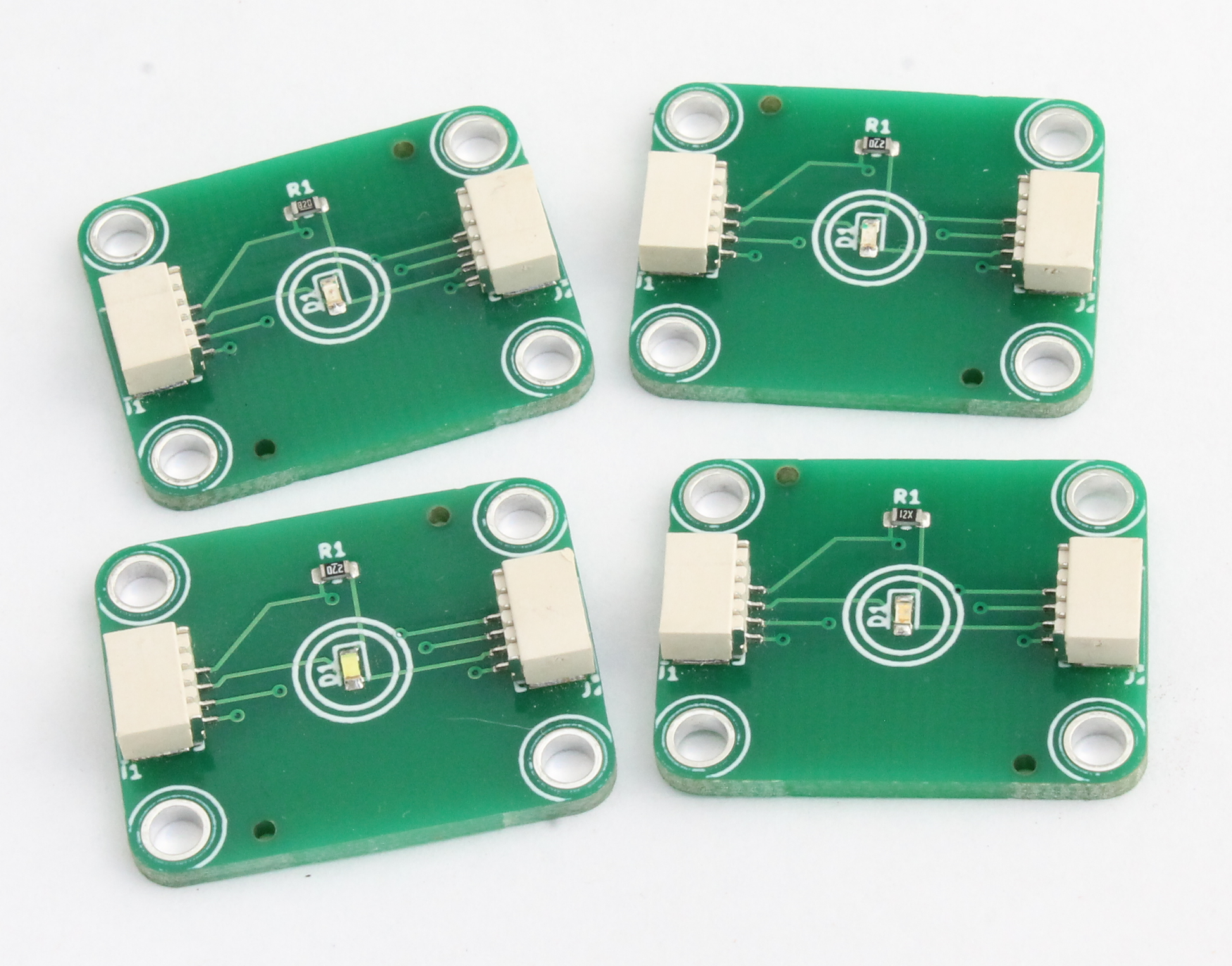

610nm LED board

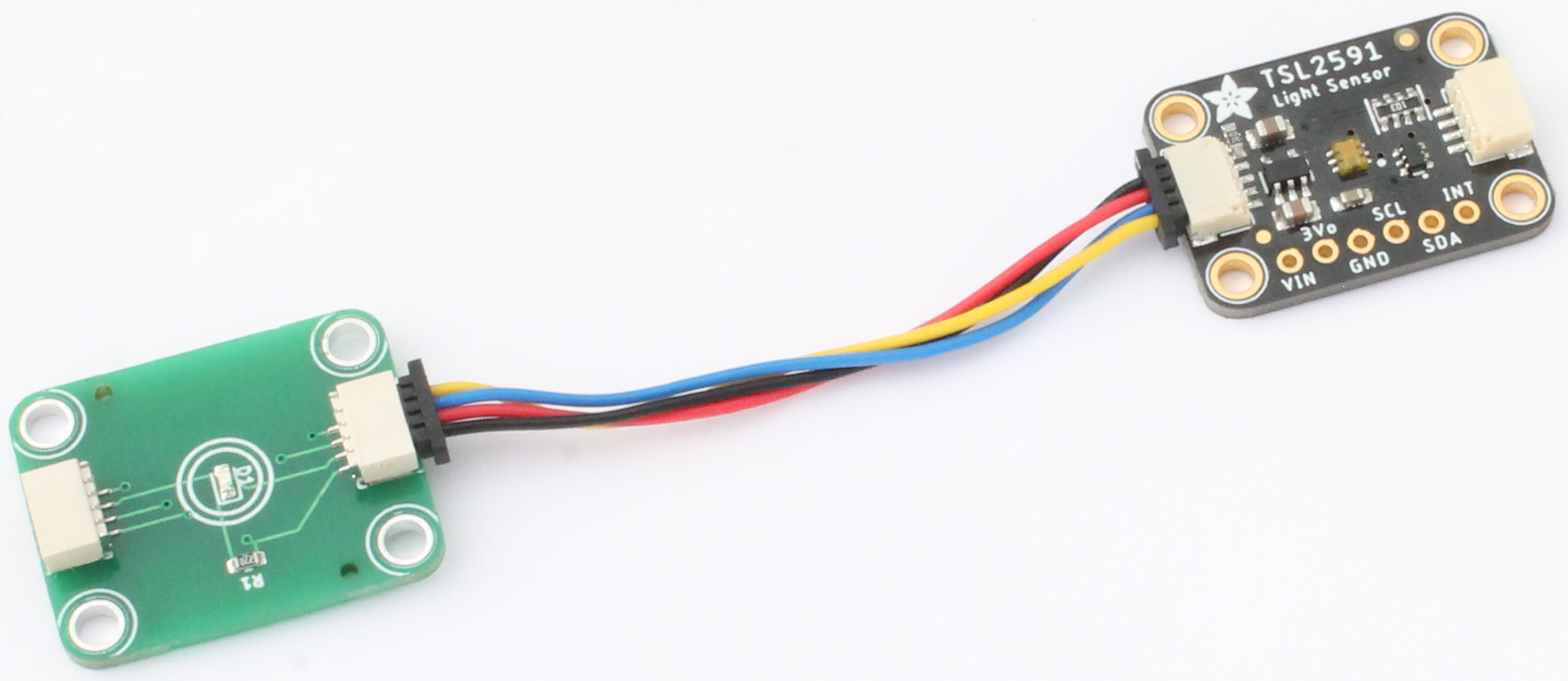

610 nm orange/red light LED board for use with the Open Colorimeter with STEMMA QT for connecting to the Adafruit STEMMA QT TSL2591 High Dynamic Range Digital Light Sensor board via a 4-pin cable and JST SH connectors and 3.3V Vcc.

Features

• Open hardware. KiCad design files @ https://github.com/iorodeo/i2c_led

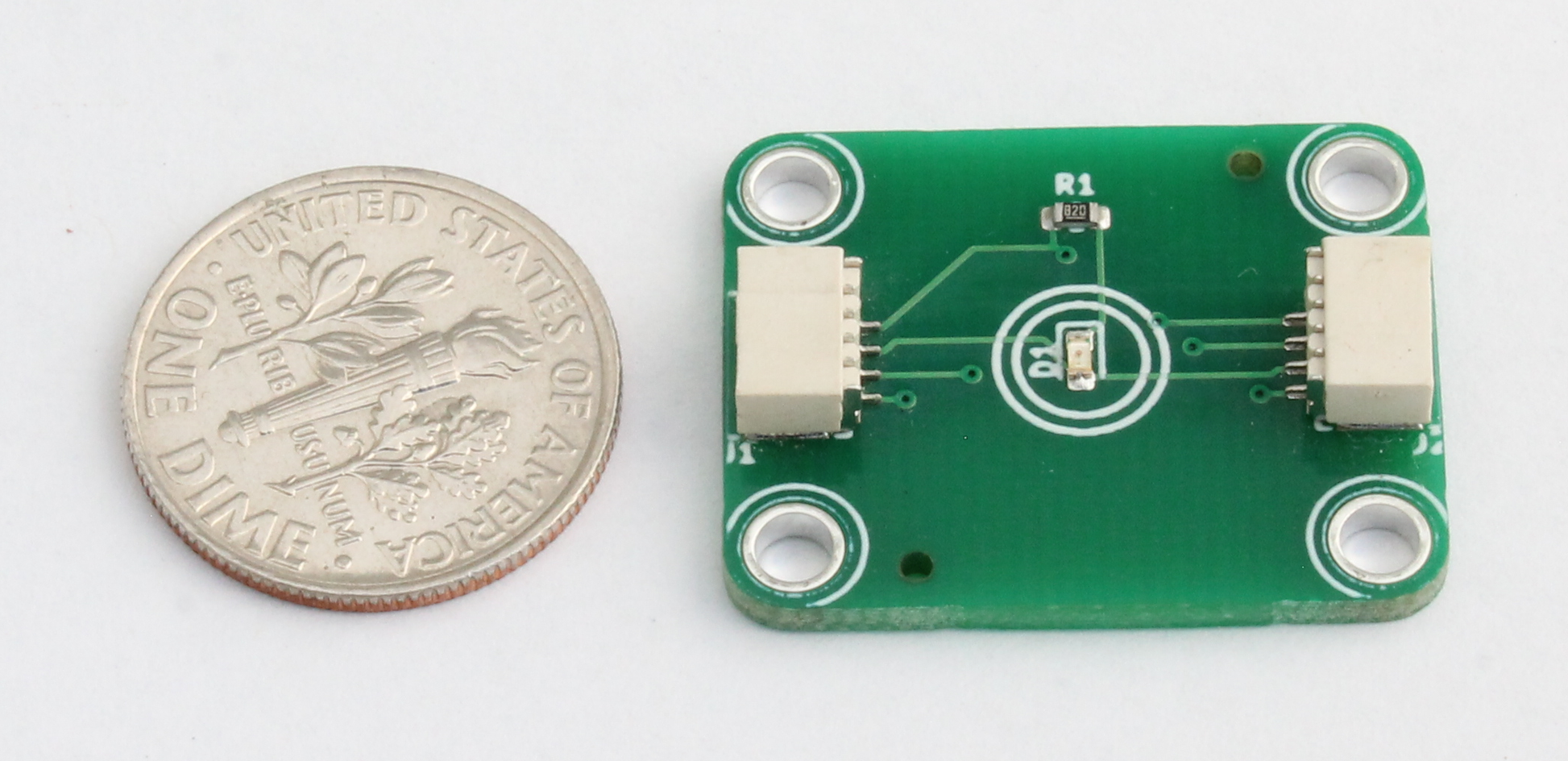

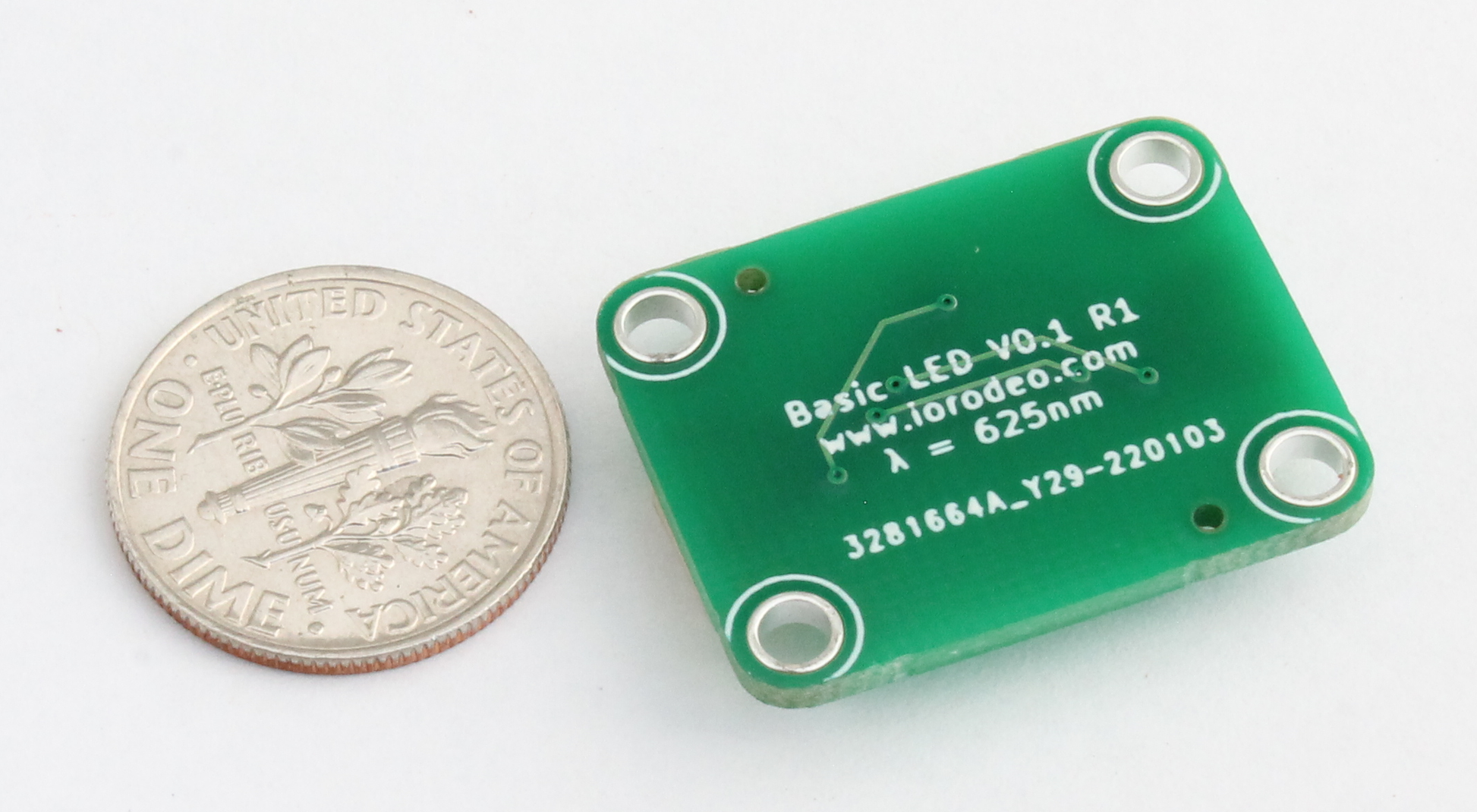

• Dimensions: 25.4 mm x 20 mm x 1.6 mm
• Two 4-pin JST SH connectors (QWIIC/STEMMA QT)

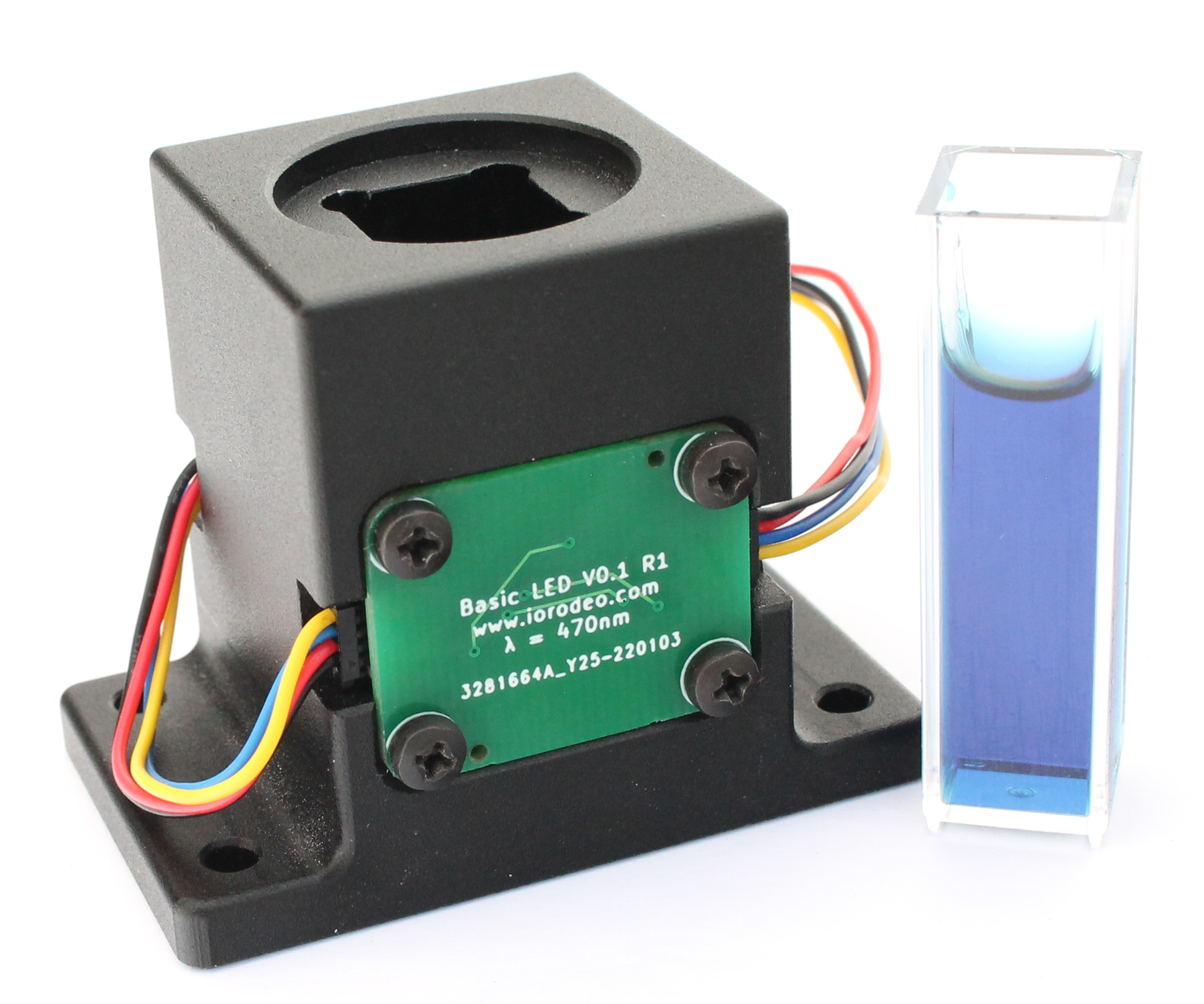

• Four M2.5 through holes for mounting e.g. to a cuvette holder
• 0603 surface mount LED and resistor

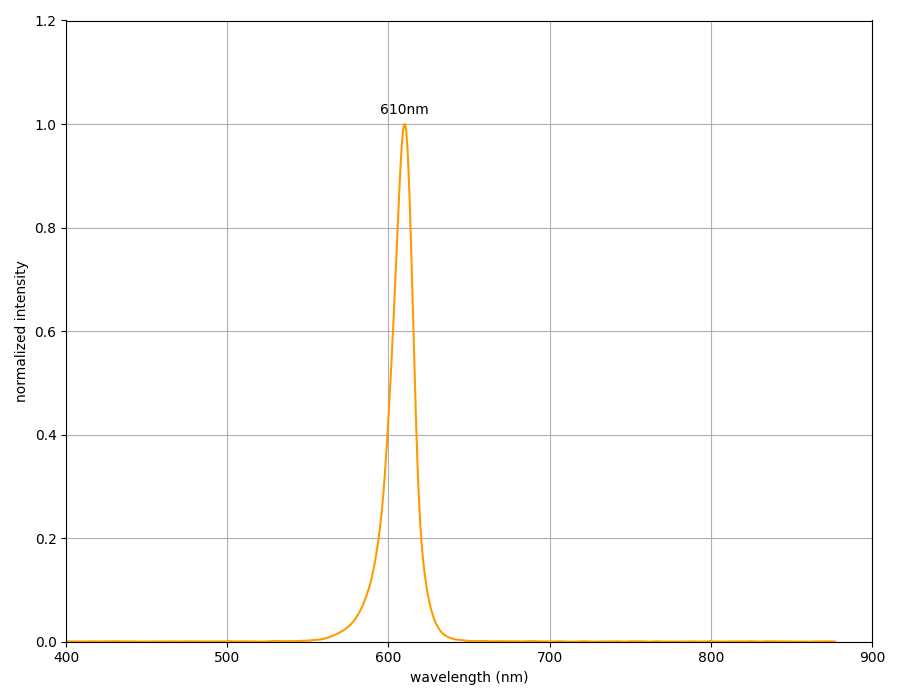

• Peak wavelength: 610 nm
• Dominant wavelength: 600-608 nm
• Bandwidth: 15 nm
• Luminous intensity: 80-150 mcd
• Viewing angle: 120°
• Vcc=3.3V
• Mfr Part #: TZ-P2-0603 0TCS1-0.6T
