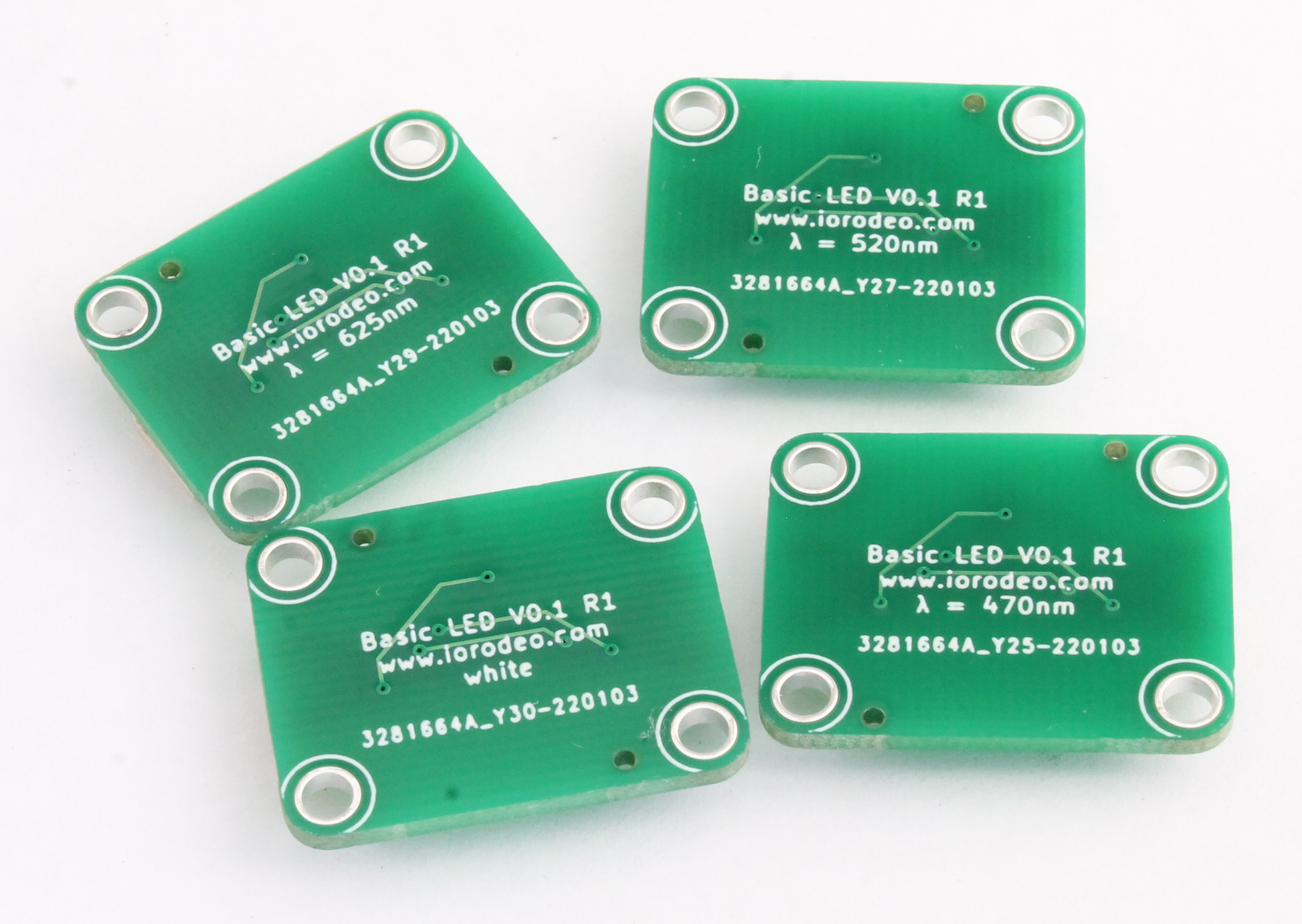

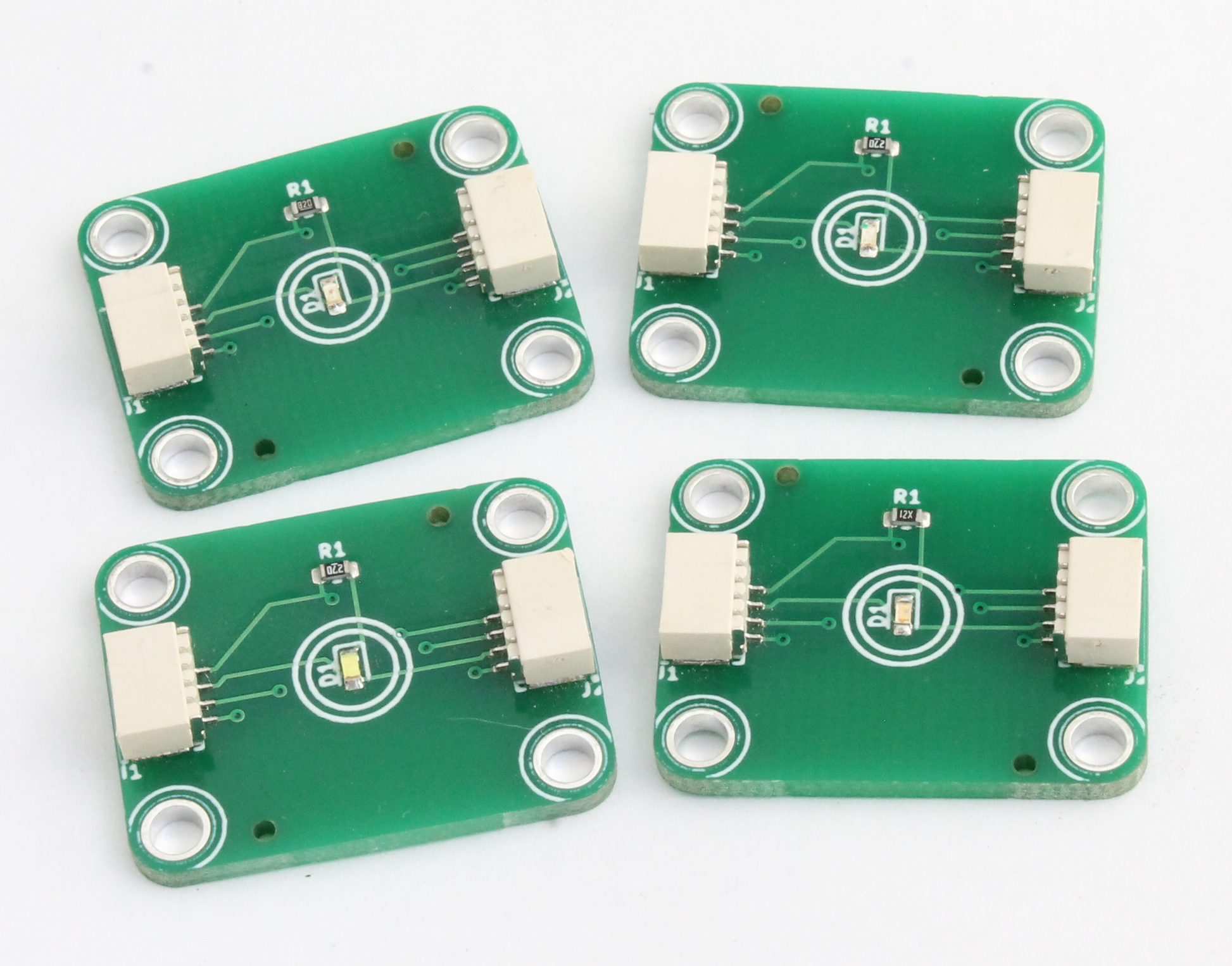

White LED board

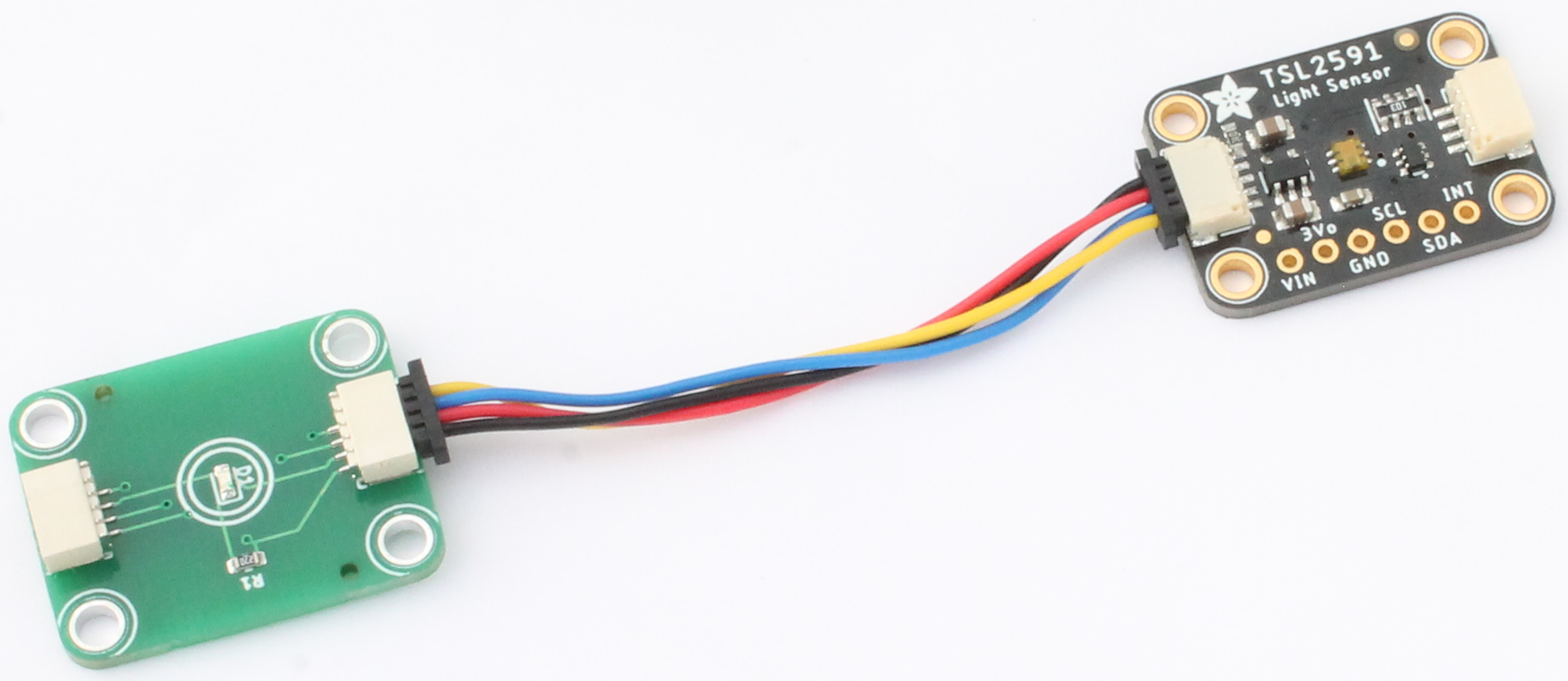

White light LED board for use with the Open Colorimeter with STEMMA QT for connecting to the Adafruit STEMMA QT TSL2591 High Dynamic Range Digital Light Sensor board via a 4-pin cable and JST SH connectors.

The white LED board is included with the Open Colorimeter.

Features

• Open hardware. KiCad design files @ https://github.com/iorodeo/i2c_led

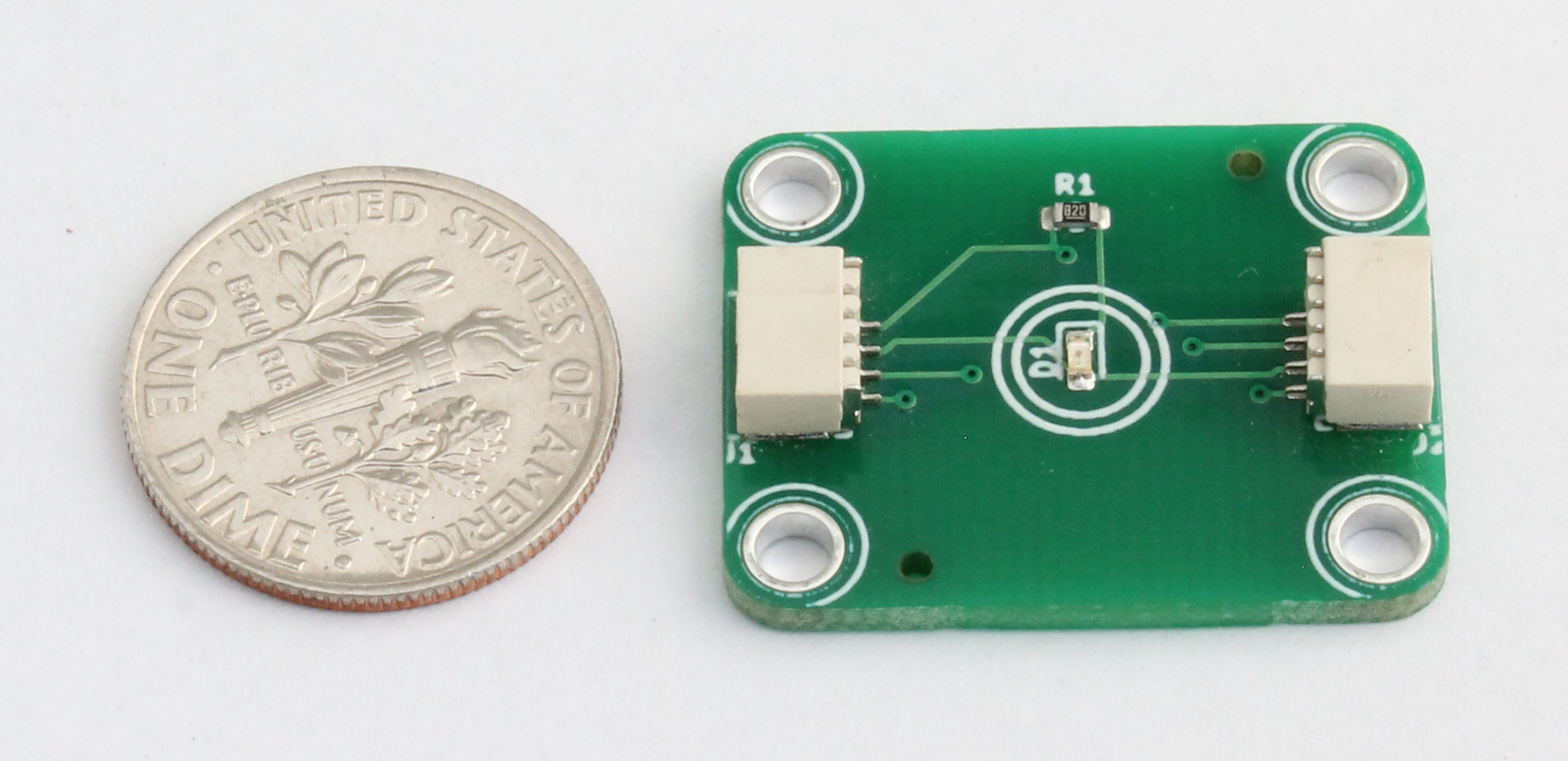

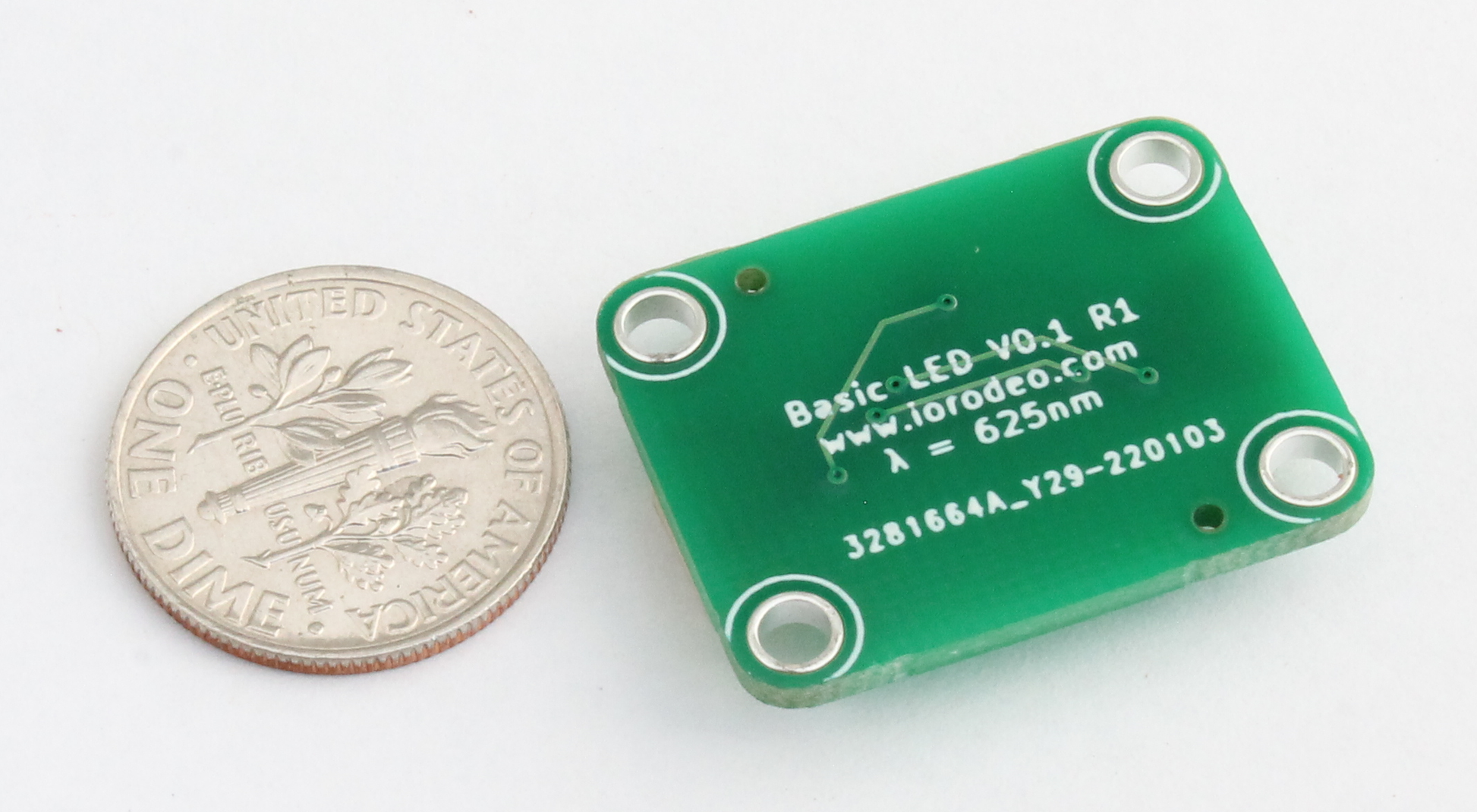

• Dimensions: 25.4 mm x 20 mm x 1.6 mm
• Two 4-pin JST SH connectors (QWIIC/STEMMA QT)

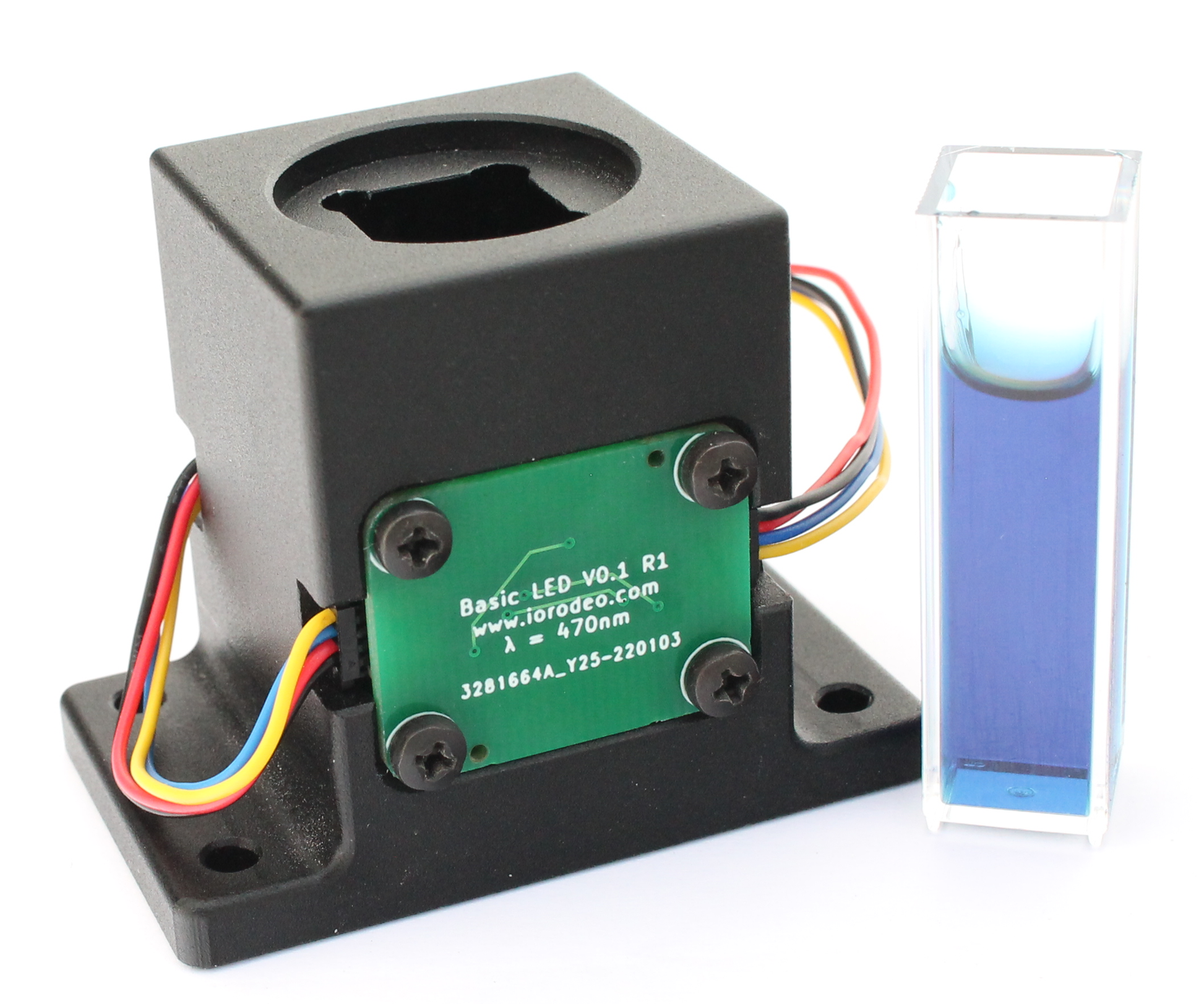

• Four M2.5 through holes for mounting e.g. to a cuvette holder
• 0603 surface mount LED and resistor
• Luminous intensity: 850 mcd (typ.)
• Viewing angle: 130°
• Mfr Part #: NCD0603W3
