Open Hardware Design

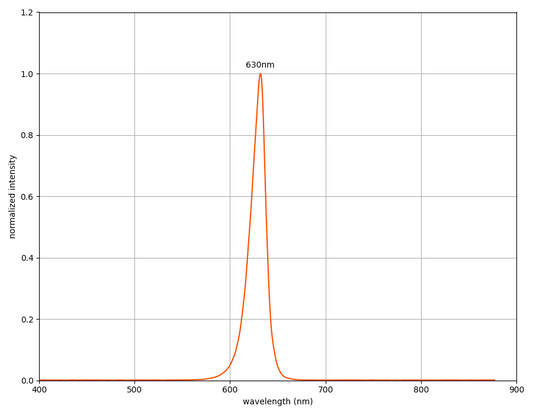

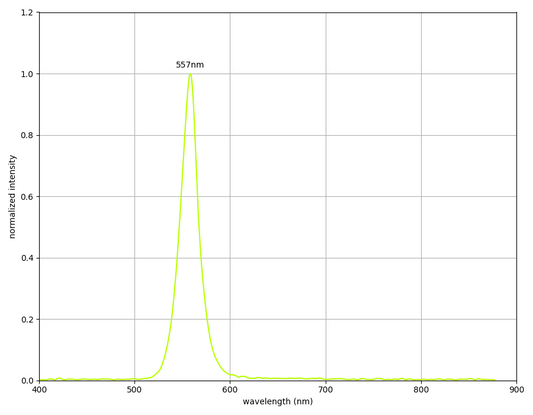

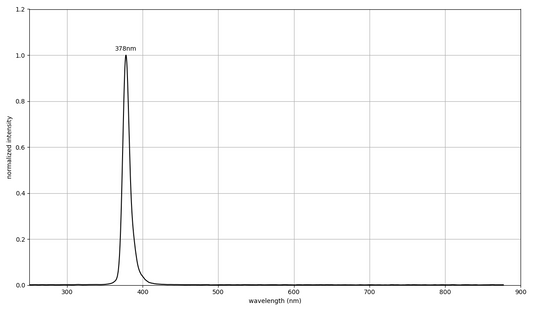

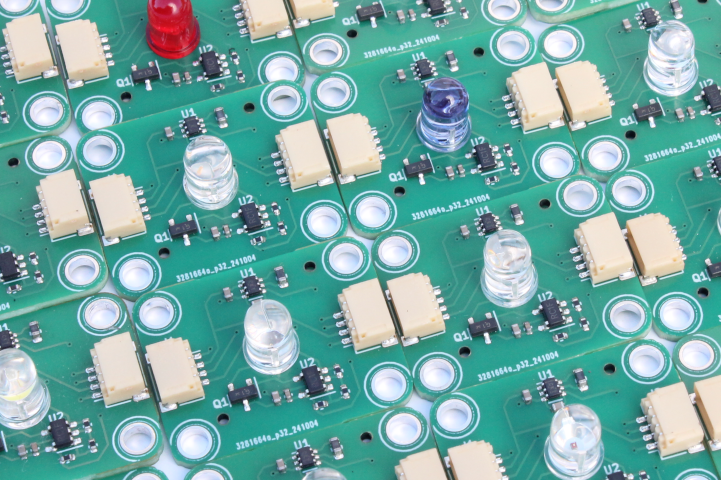

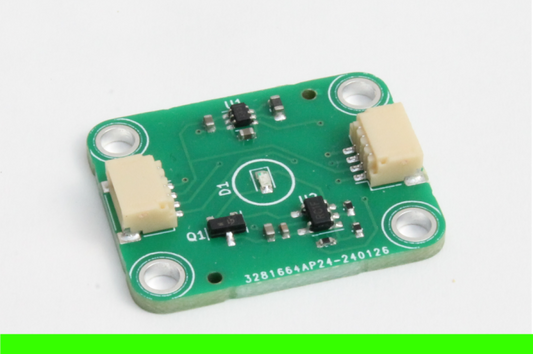

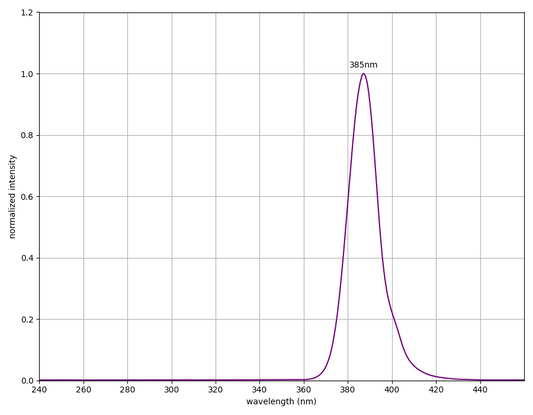

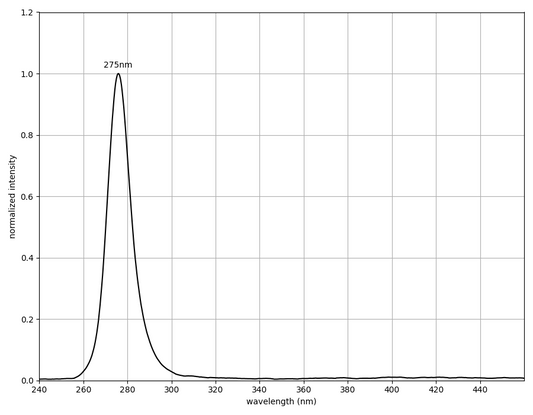

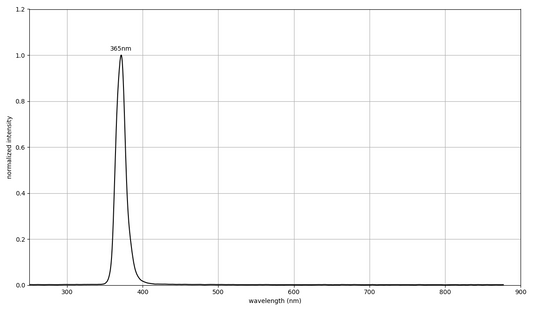

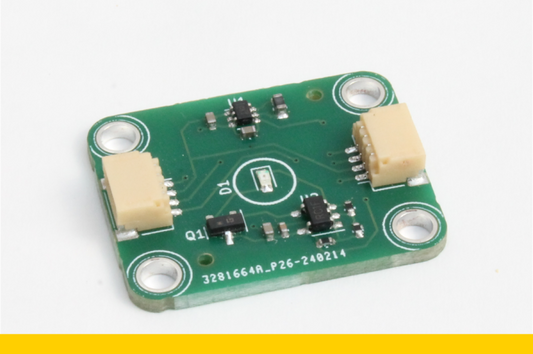

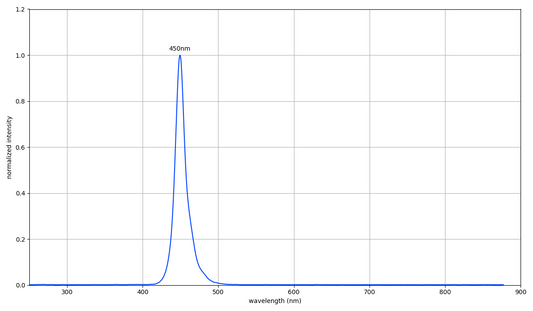

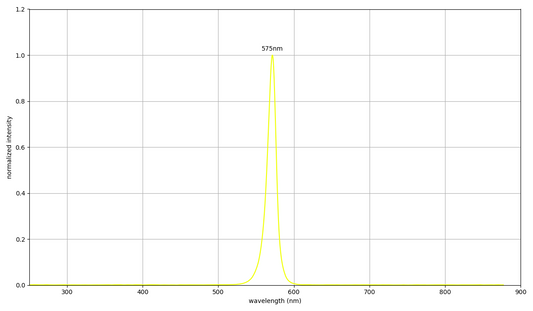

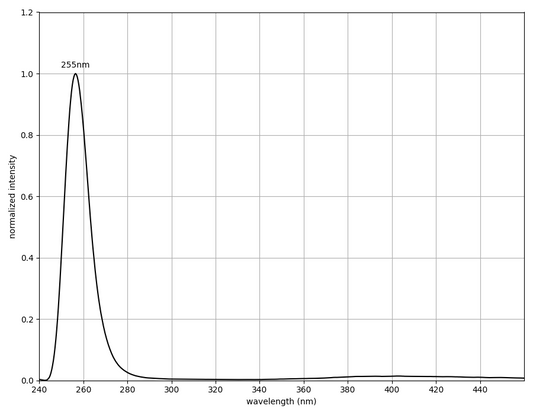

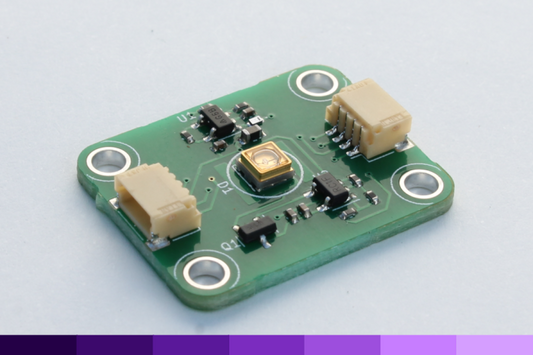

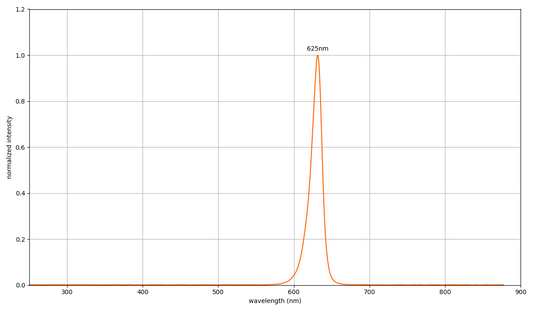

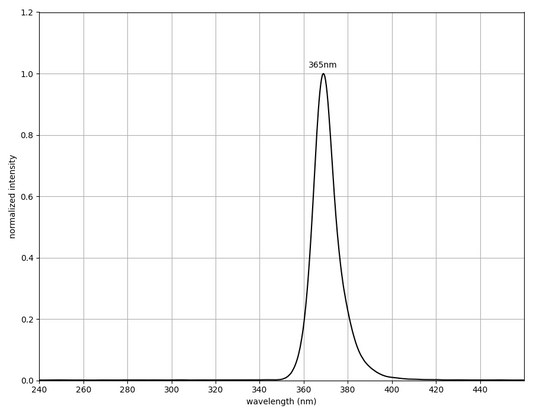

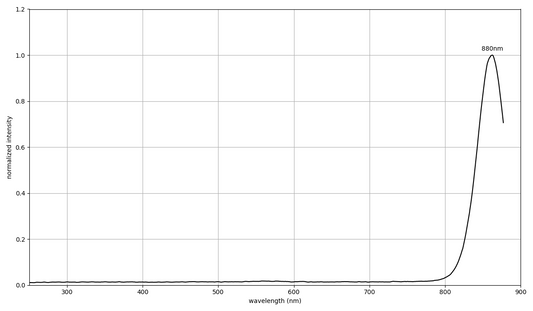

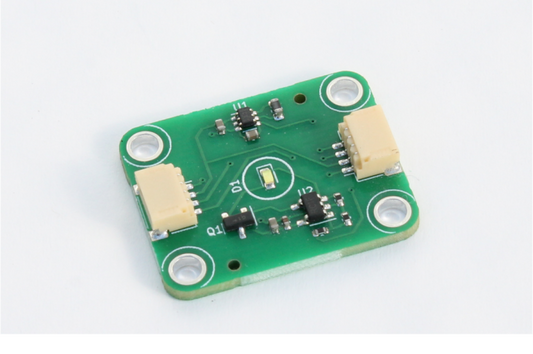

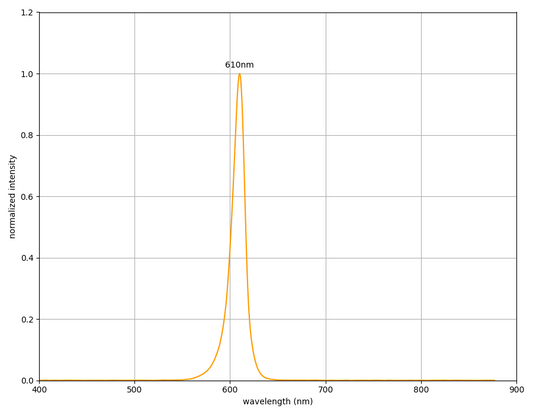

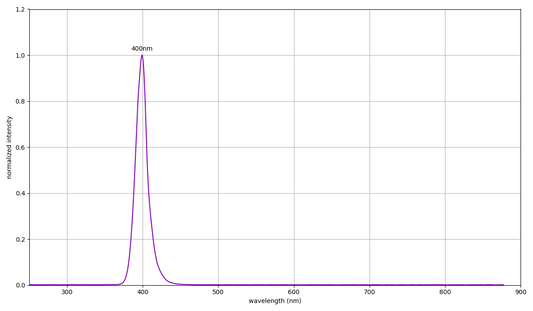

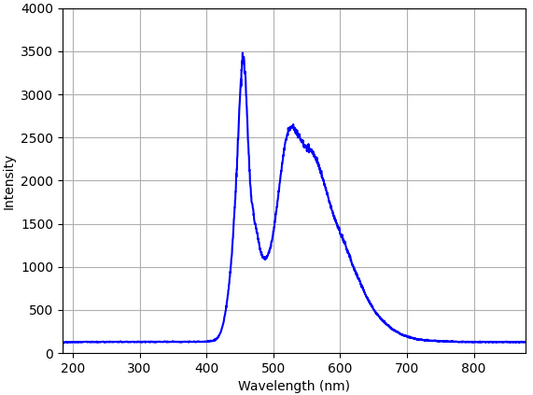

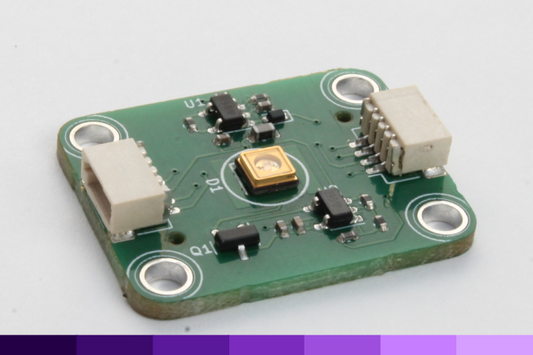

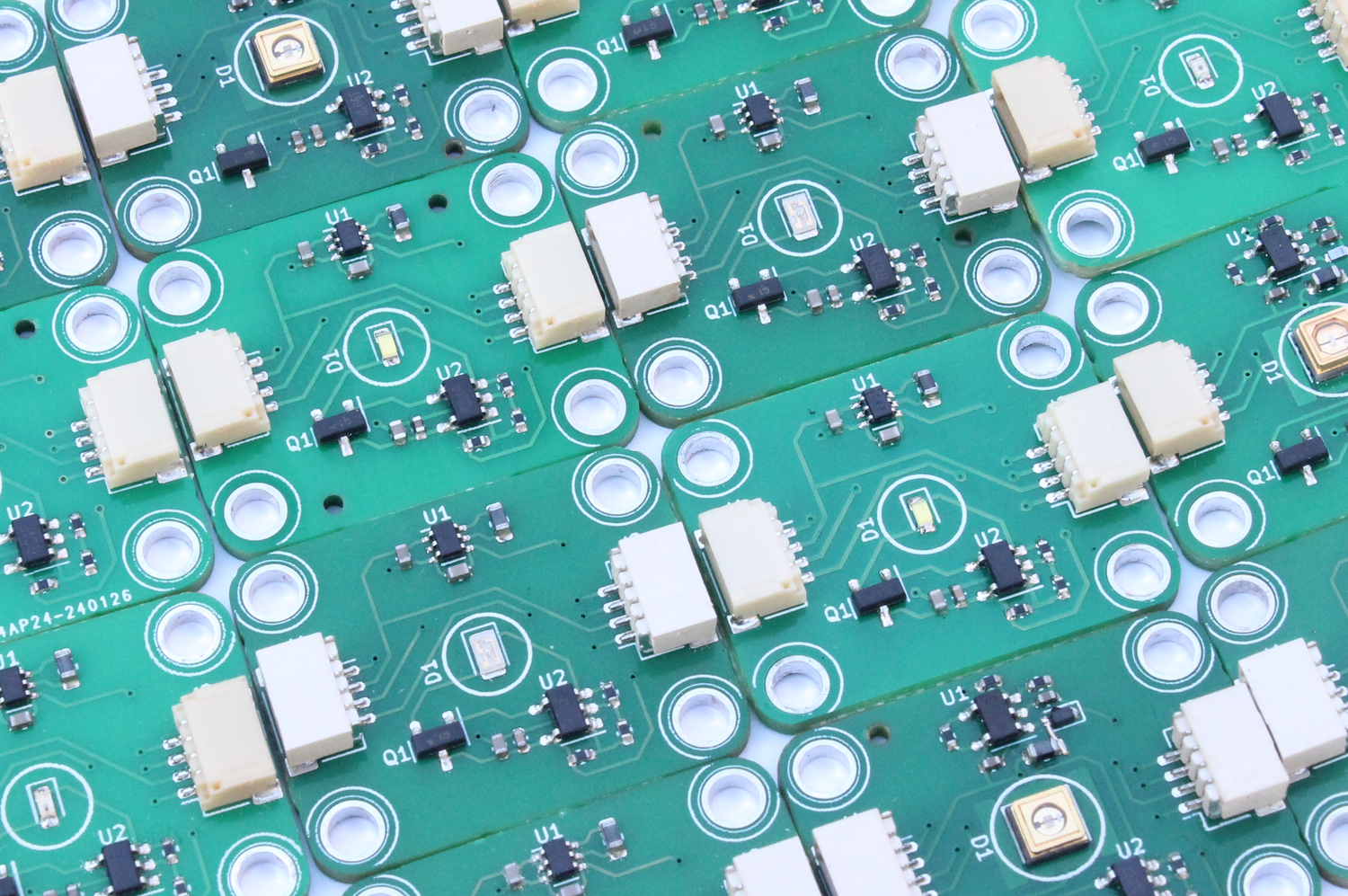

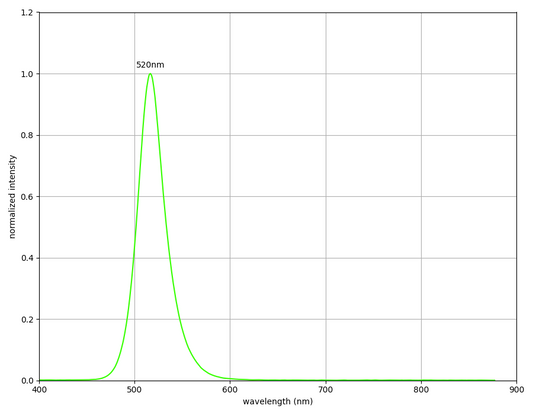

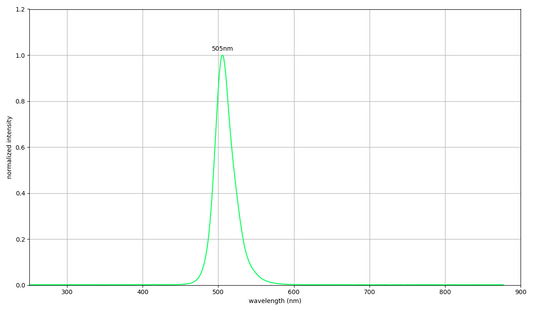

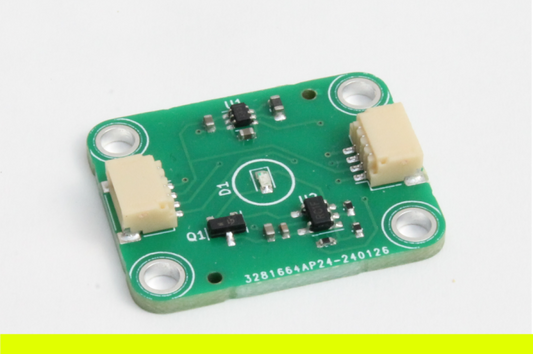

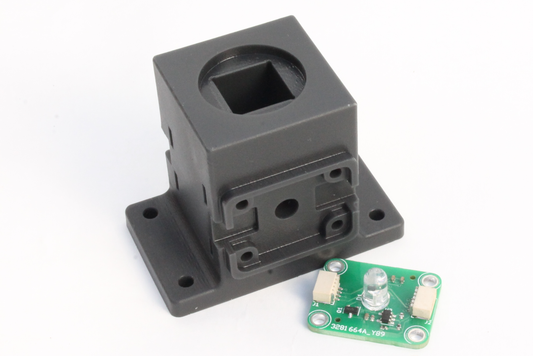

  • PCB Size: 25.4 mm x 20 mm x 1.6 mm
  • Two 4-pin JST SH connectors
  • Four M2.5 through holes for mounting

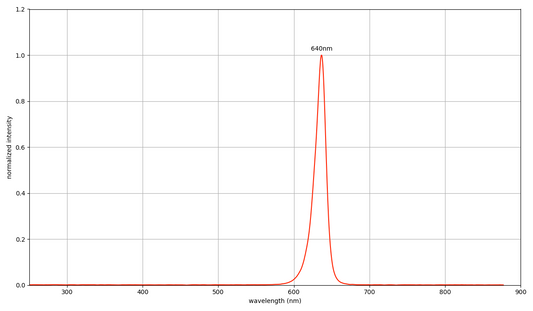

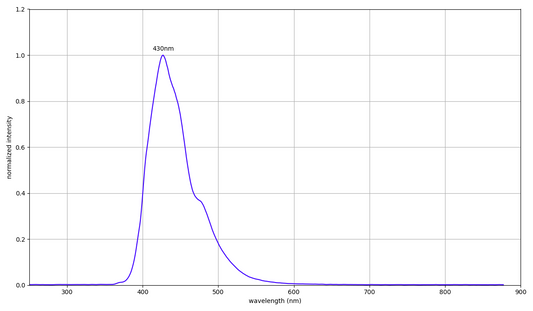

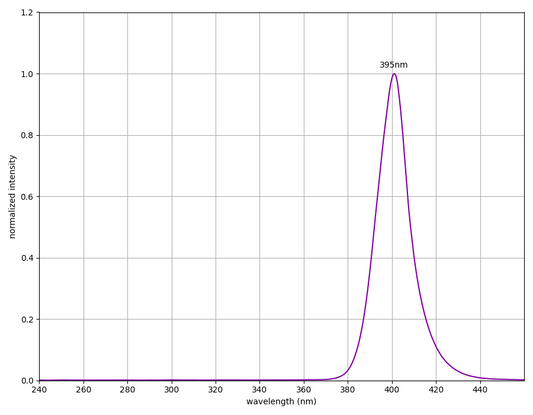

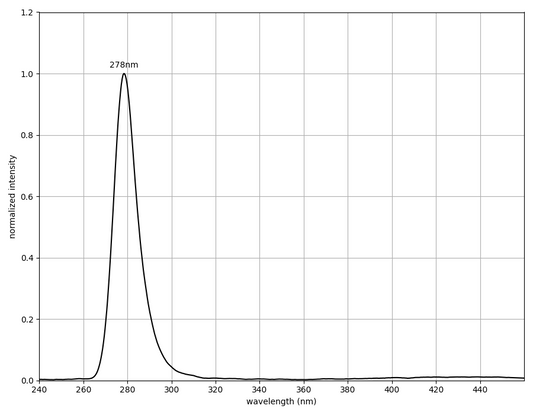

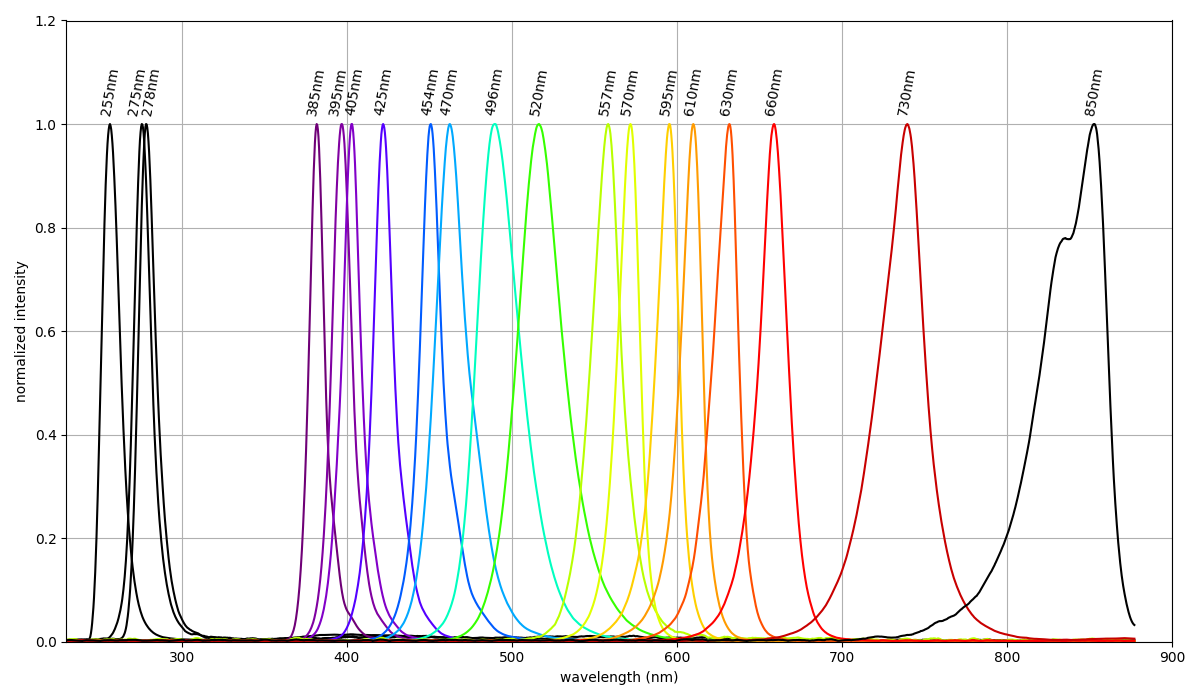

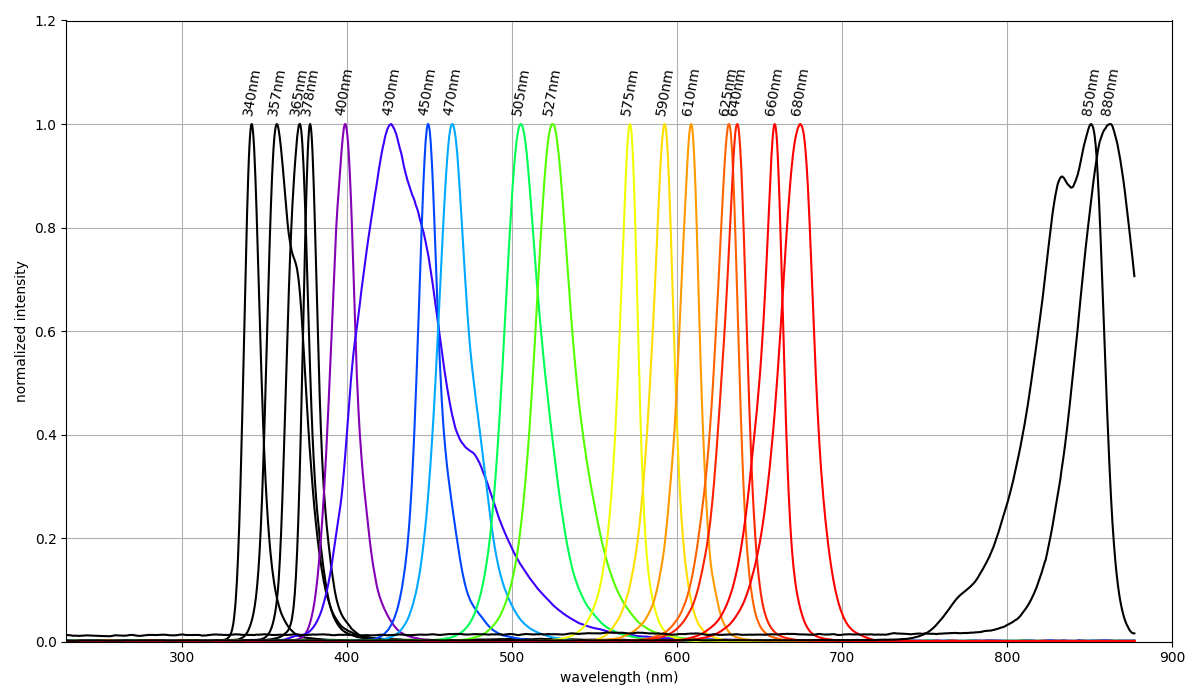

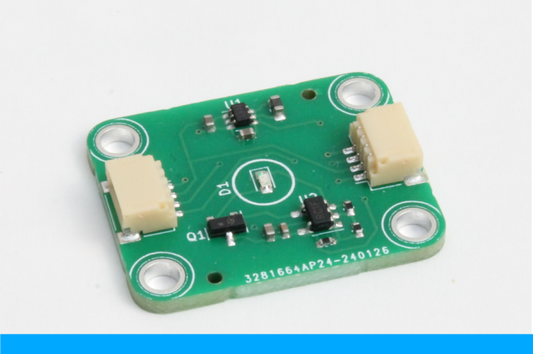

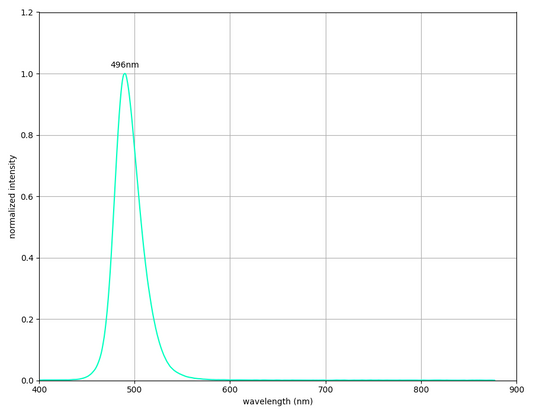

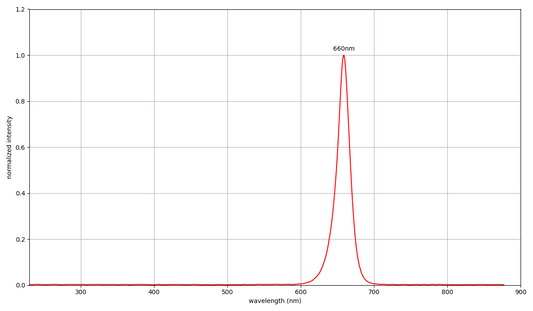

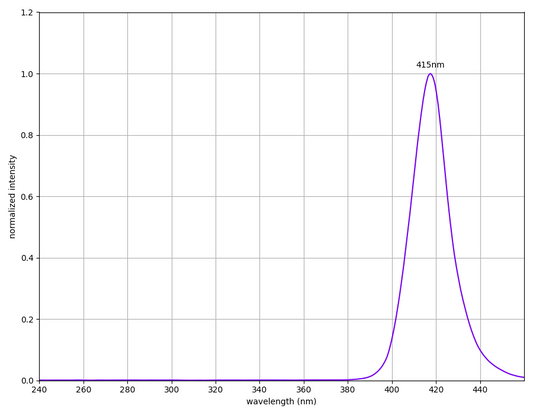

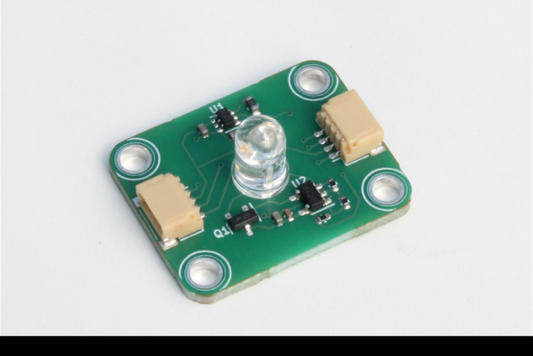

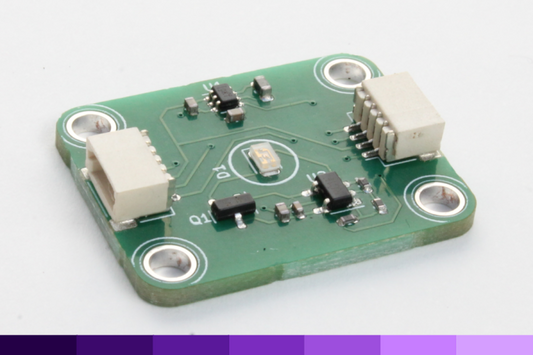

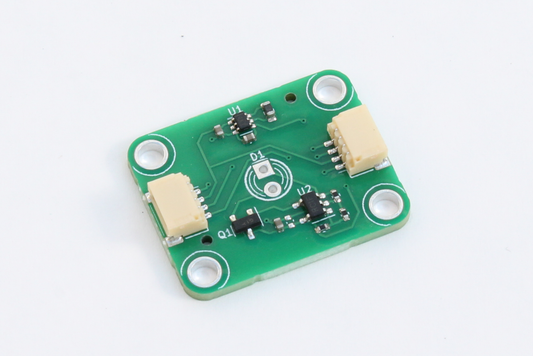

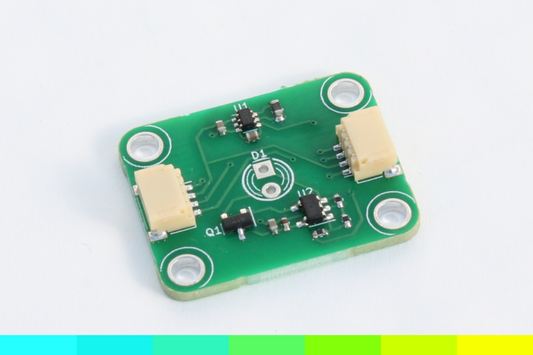

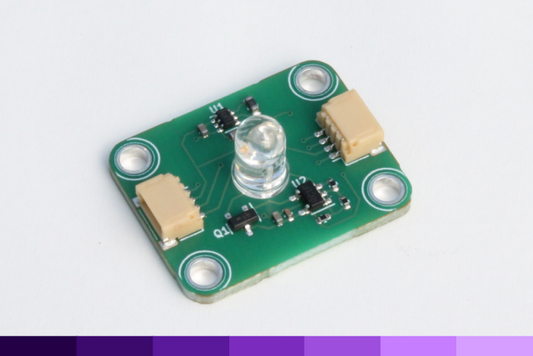

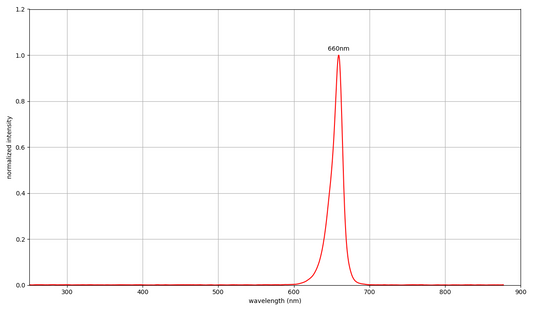

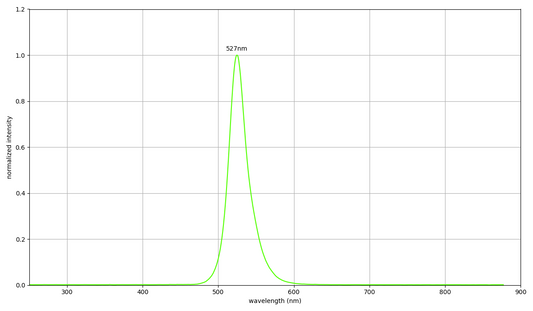

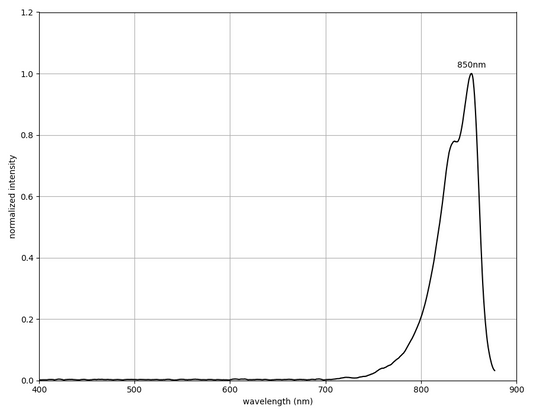

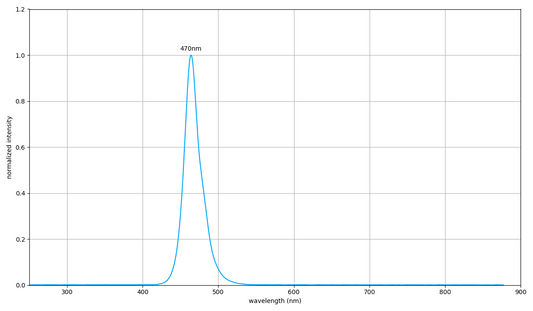

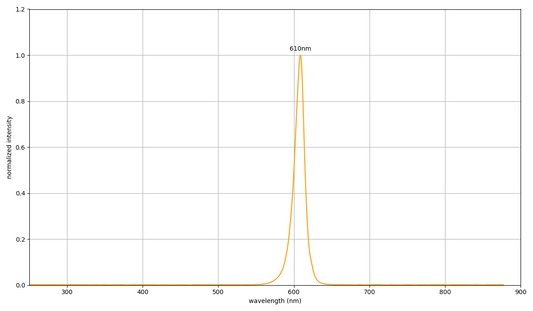

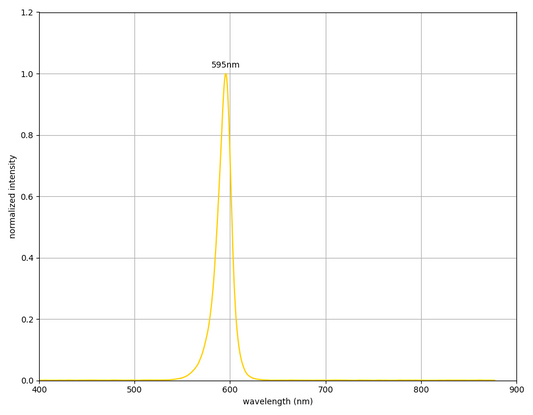

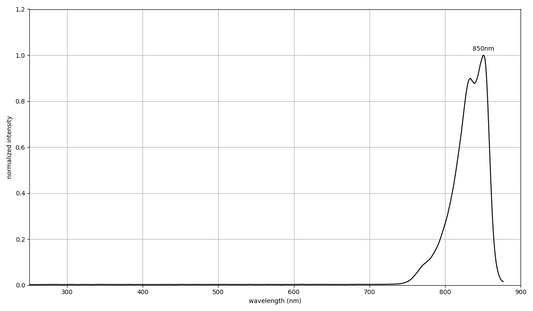

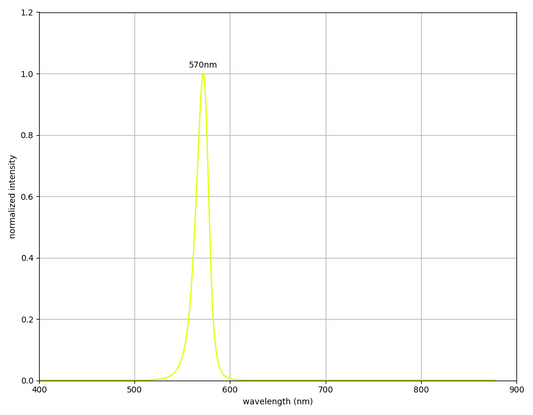

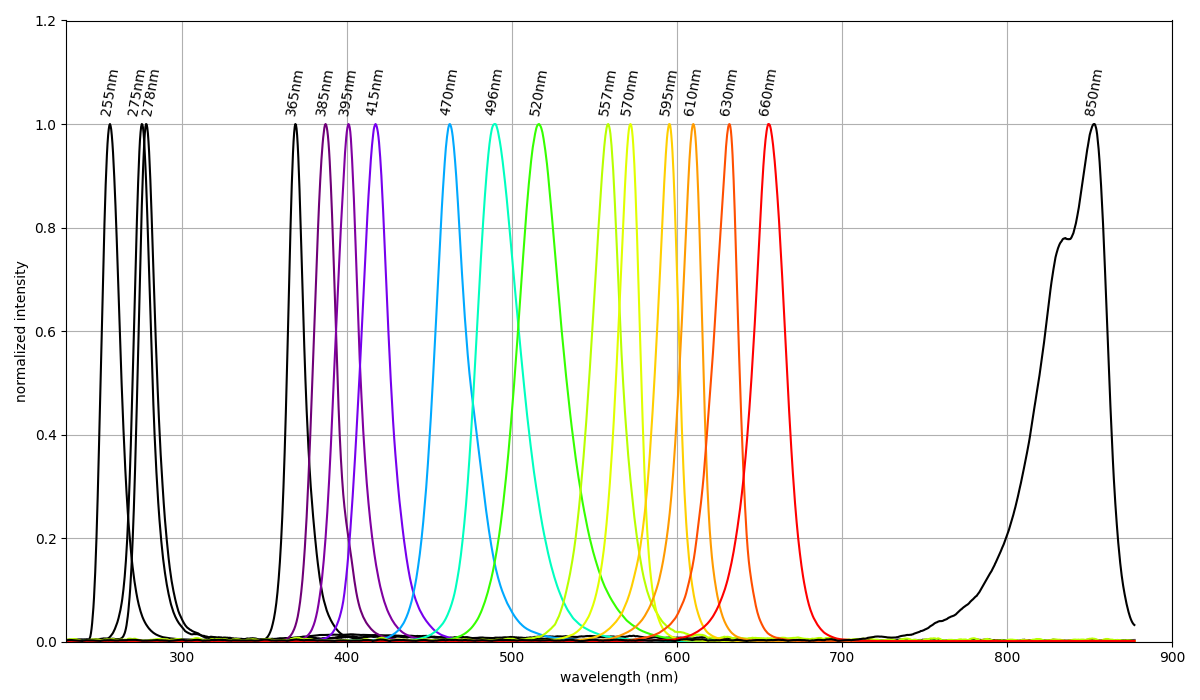

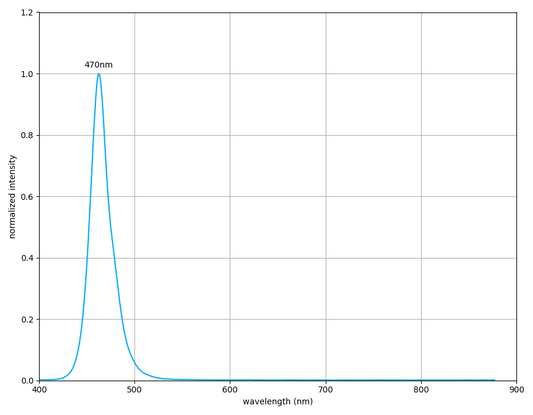

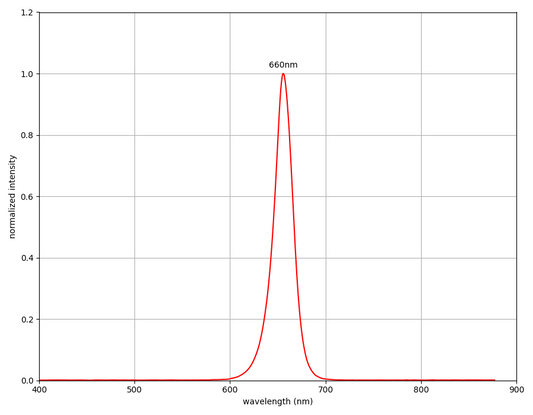

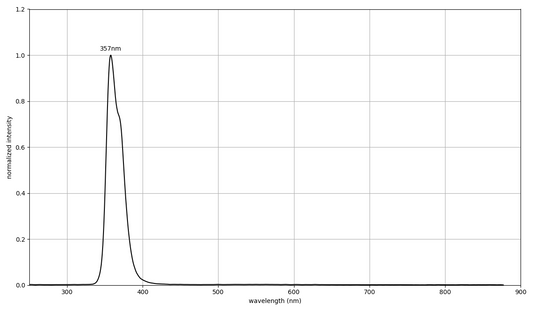

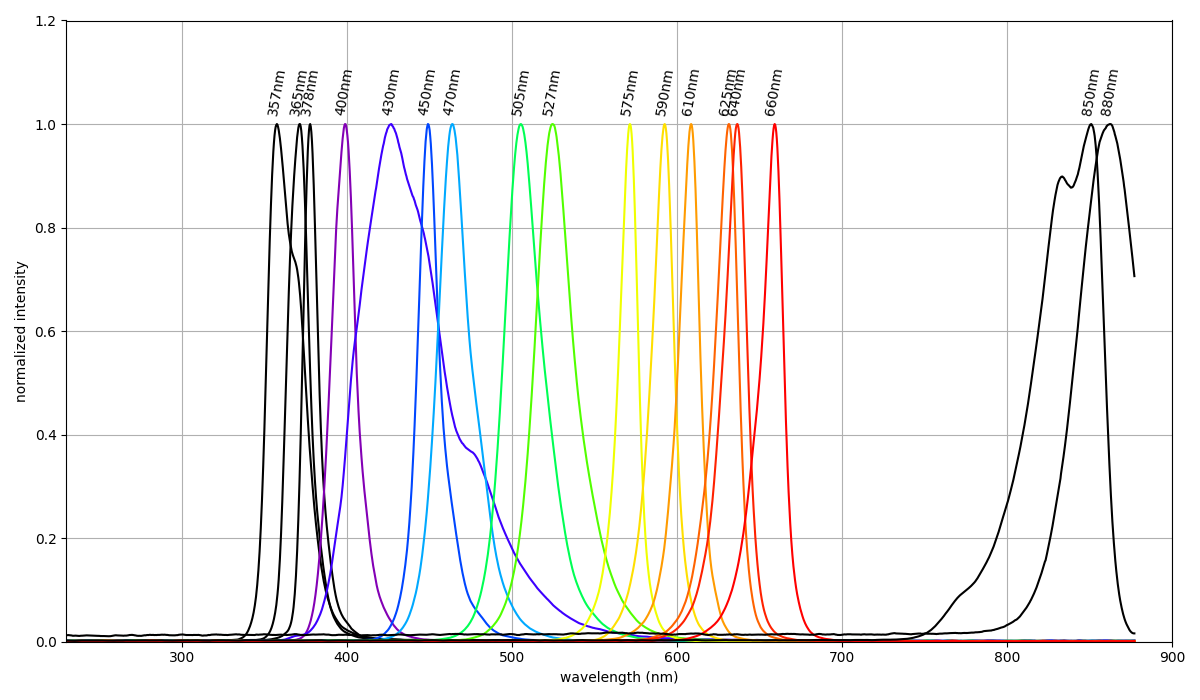

  • Surface mount or radial LED mounted in the center
  • On-board voltage regulator enables operation from 3.3V to 5V input voltage
  • Active 16mA (or 24mA) constant current LED driver which maintains stable LED current
