430nm Radial LED board
430nm Radial LED board
Regular price
$ 7.00 USD
Regular price
Sale price
$ 7.00 USD
Unit price
per
430nm blue light LED board for use with Open Colorimeter. products. Use with the radial LED cuvette holder.
The 430nm LED board has STEMMA QT for connecting to the Adafruit STEMMA QT TSL2591 High Dynamic Range Digital Light Sensor board via a 4-pin cable and JST SH connectors.

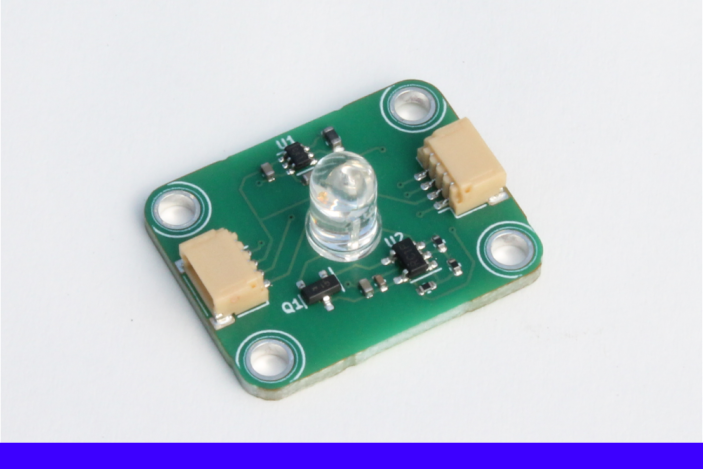

PCB Features
- Open hardware. KiCad design files @ https://github.com/iorodeo/i_control_led
- On board voltage regulator enables operation from a 3.3V to 5V input voltage
- Active constant current LED driver maintains stable LED current.
- Dimensions: 25.4 mm x 20 mm x 1.6 mm
- Two 4-pin JST SH connectors (QWIIC/STEMMA QT)
- Four M2.5 through holes for mounting e.g. to a cuvette holder
LED Features
- Type: 5mm through-hole LED

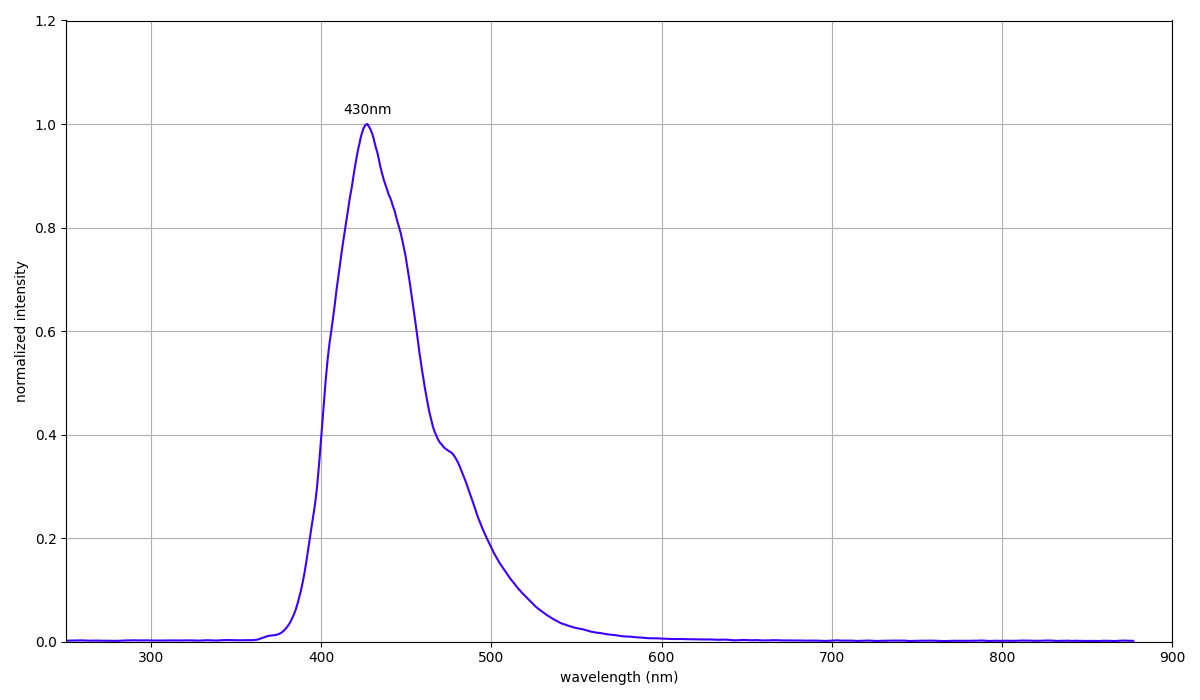

- Wavelength: 430nm
- LED Luminous Intensity: 400 mcd
- LED Mfr Part #: SL905BCE
