Feather Tripler PCB
Feather Tripler PCB
Regular price
$ 28.00 USD
Regular price
Sale price
$ 28.00 USD
Unit price
per
Couldn't load pickup availability

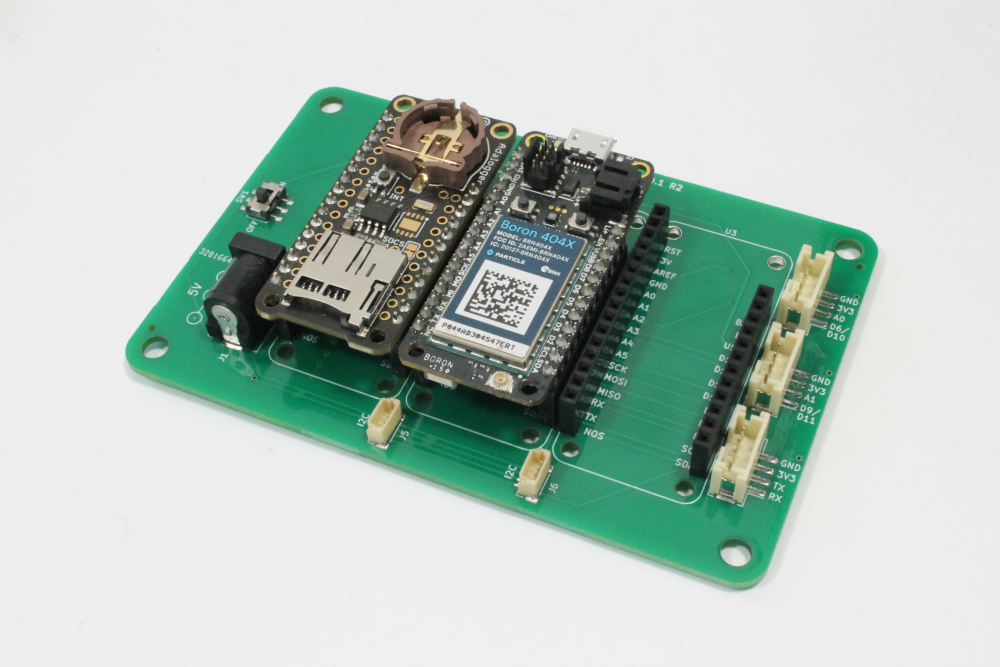

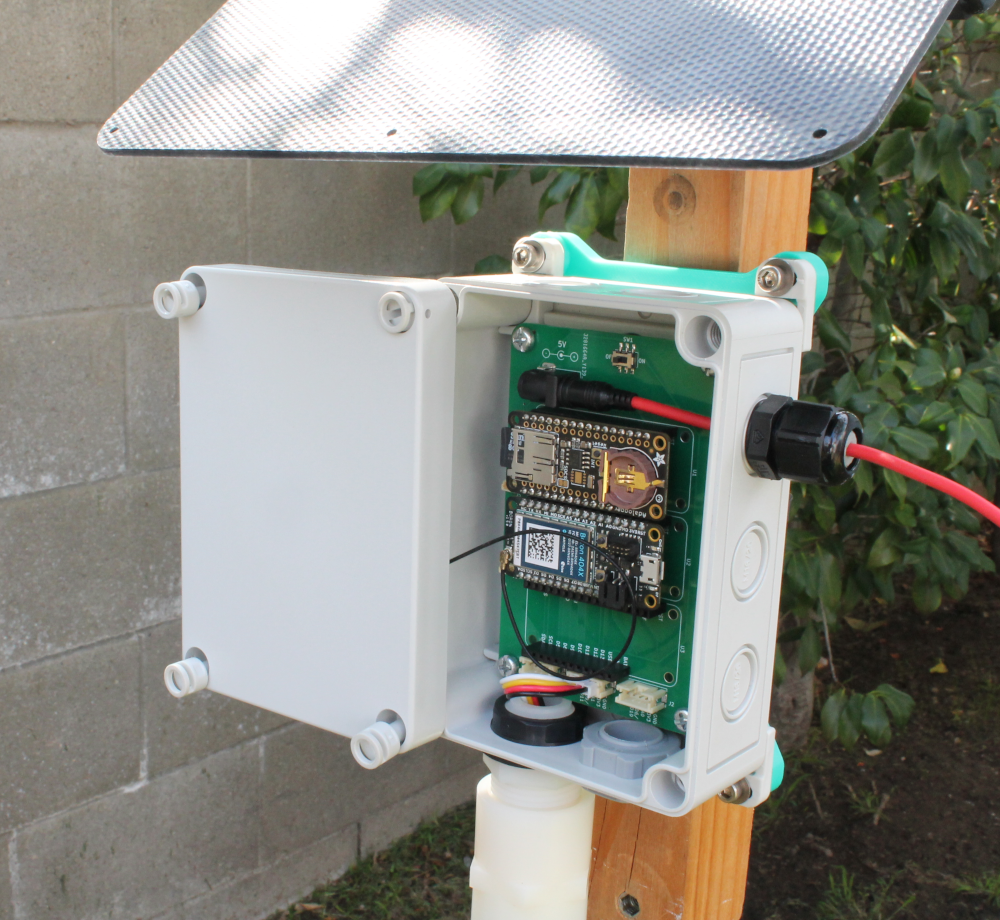

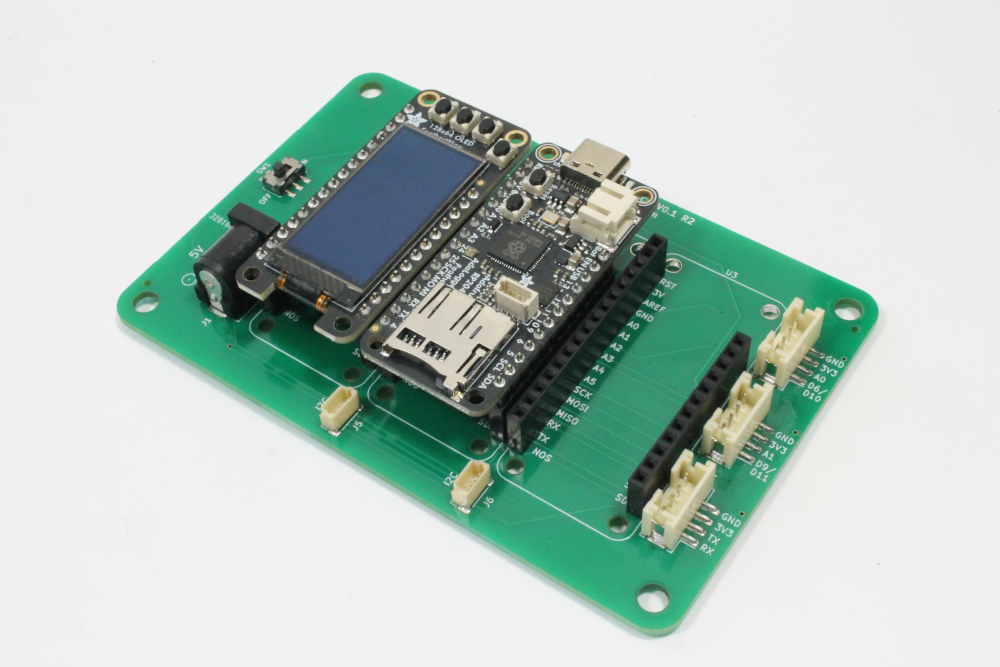

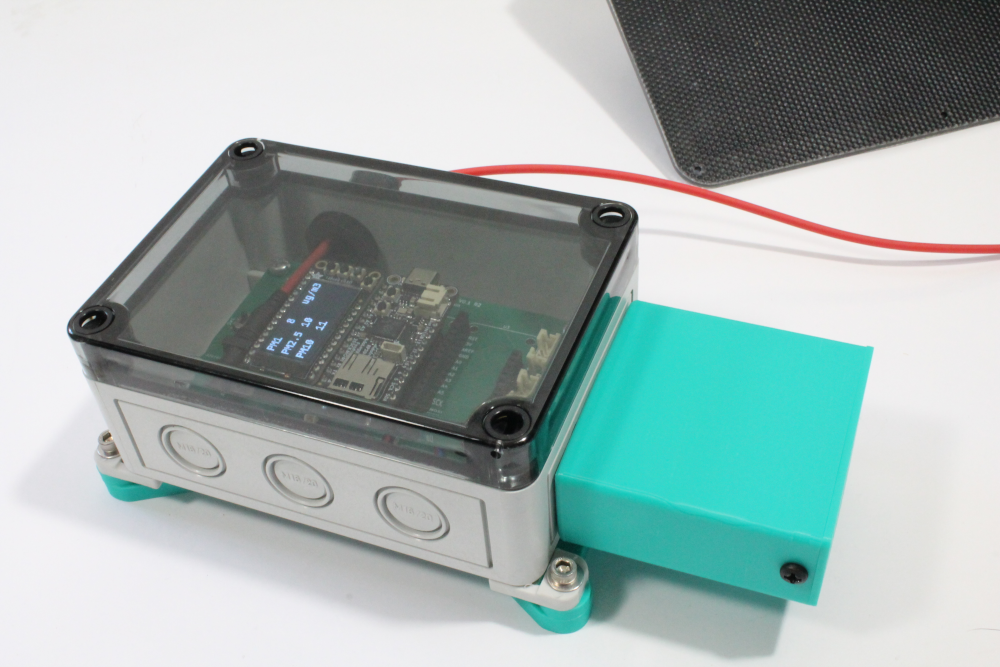

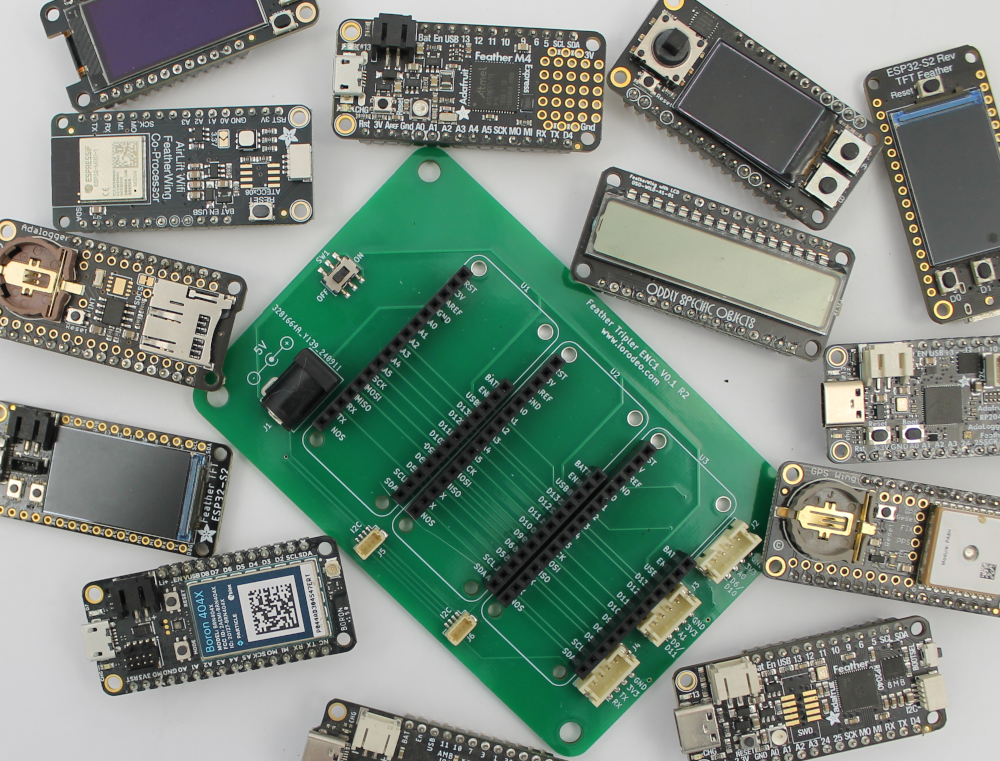

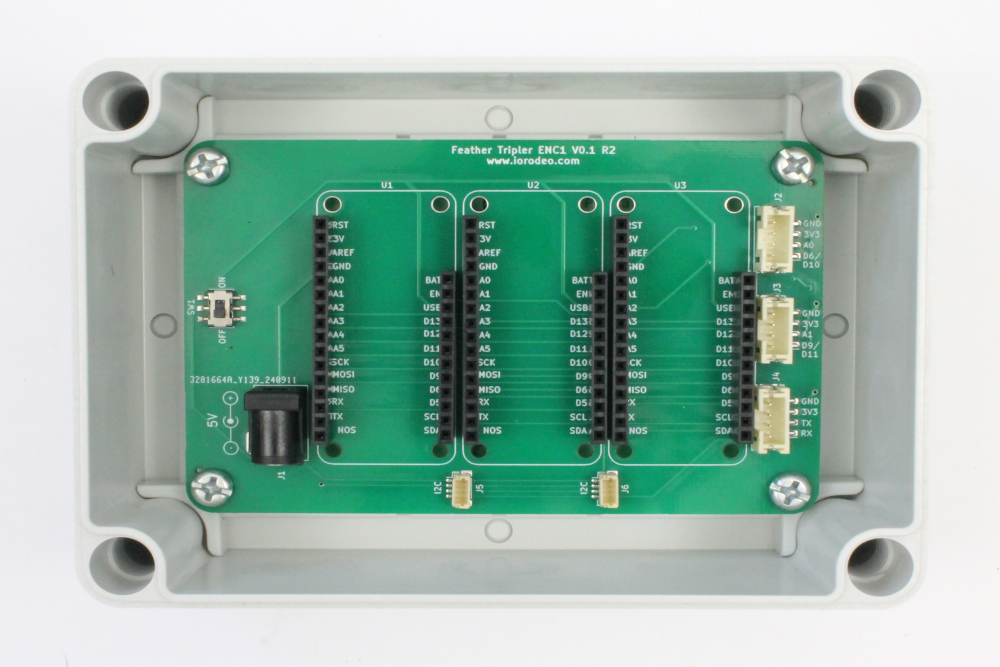

The Feather Tripler PCB is carrier-board designed for rapid prototyping of outdoor monitoring projects. The PCB works with the Adafruit Feather ecosystem of Feather microcontroller boards and FeatherWing expansion boards. As the name suggests, the Feather Tripler has 3 sets of Feather/FeatherWing headers and will work with up to three boards (1 Feather + 2 FeatherWings). The PCB is designed to fit inside a Polycase SK-15 waterproof enclosure using a spacer kit.
Feather Tripler Details

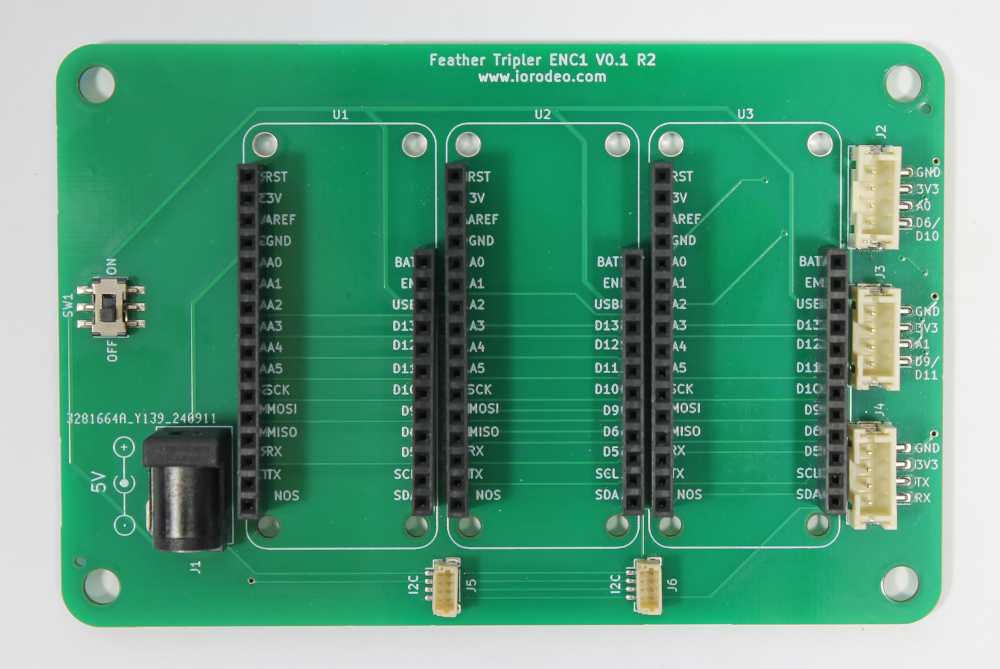

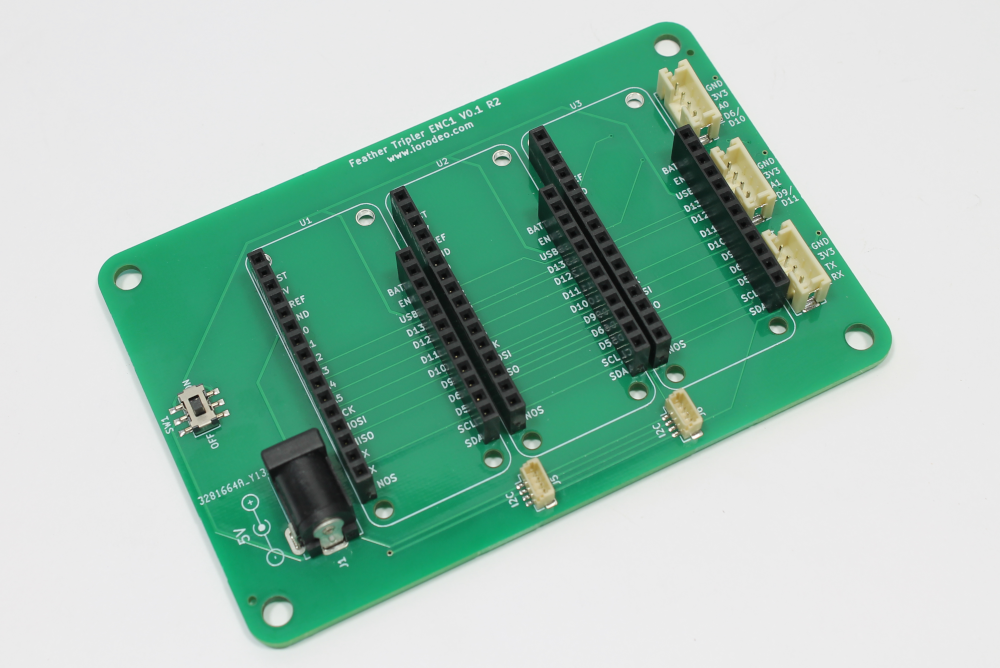

- PCB Size: 70 mm x 106 mm
- 4 corner mounting holes to fit the spacing in the SK-15
- Three JST PH 4-pin connectors offering digital IO, analog input, UART, GND and PWR

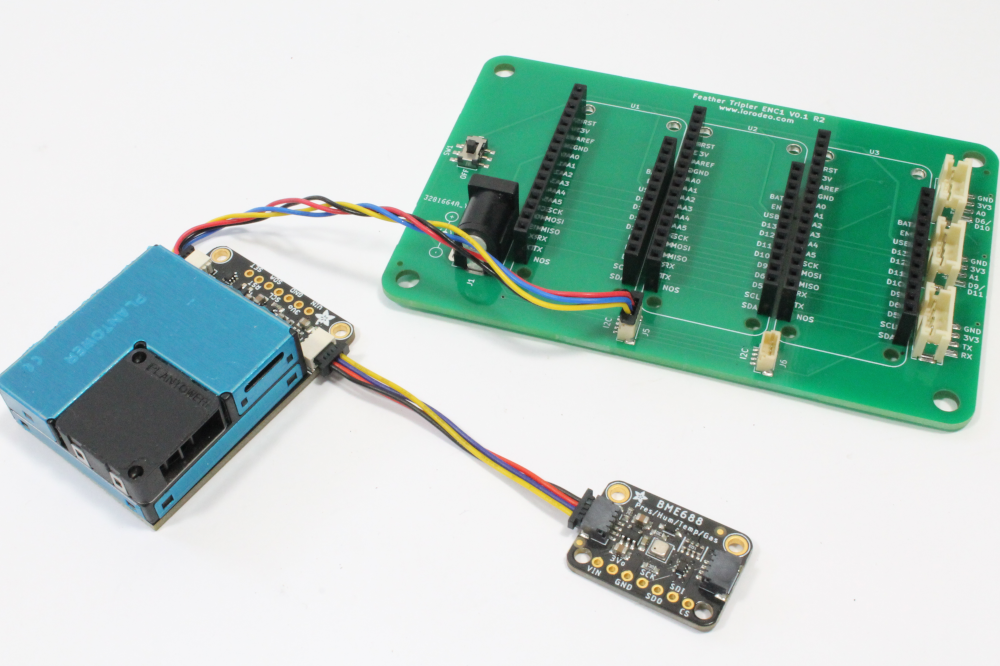

- Two I2C connectors (JST SH) with Stemma-QT/qwiic pinout

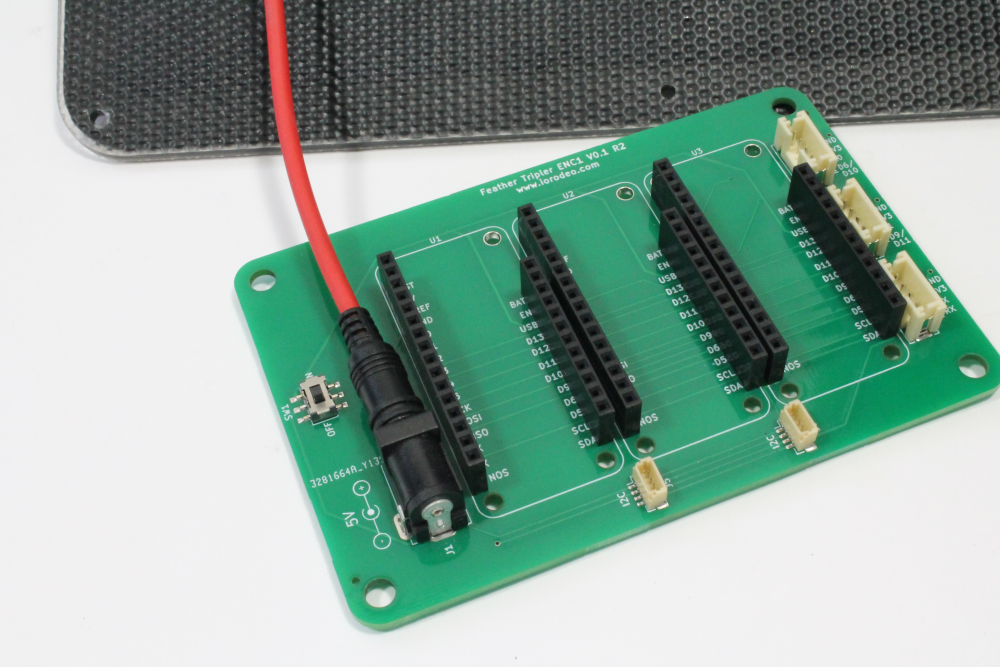

- 5V power input via a 3.4 x 1.0 mm barrel jack connector. Compatible with the Voltaic solar 5V system or a 5V wall adapter with a similar connector. On/off switch for the 5V power supply
Learn more here
- Open hardware KiCad design files: https://github.com/iorodeo/iorodeo_feather_tripler_enc1
- Documentation: http://blog.iorodeo.com/introducing-feather-tripler/
