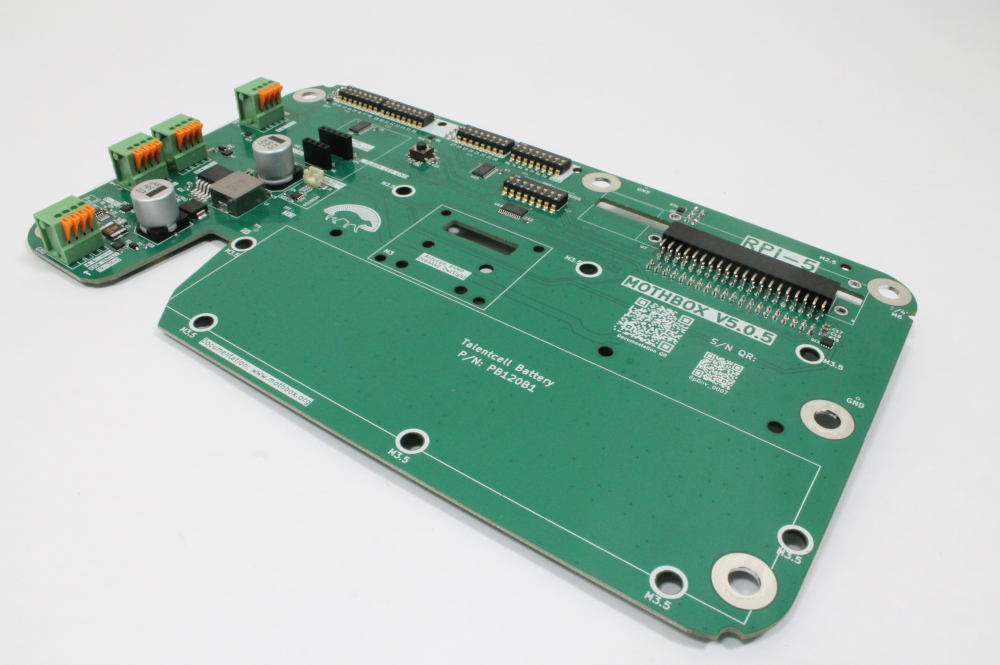

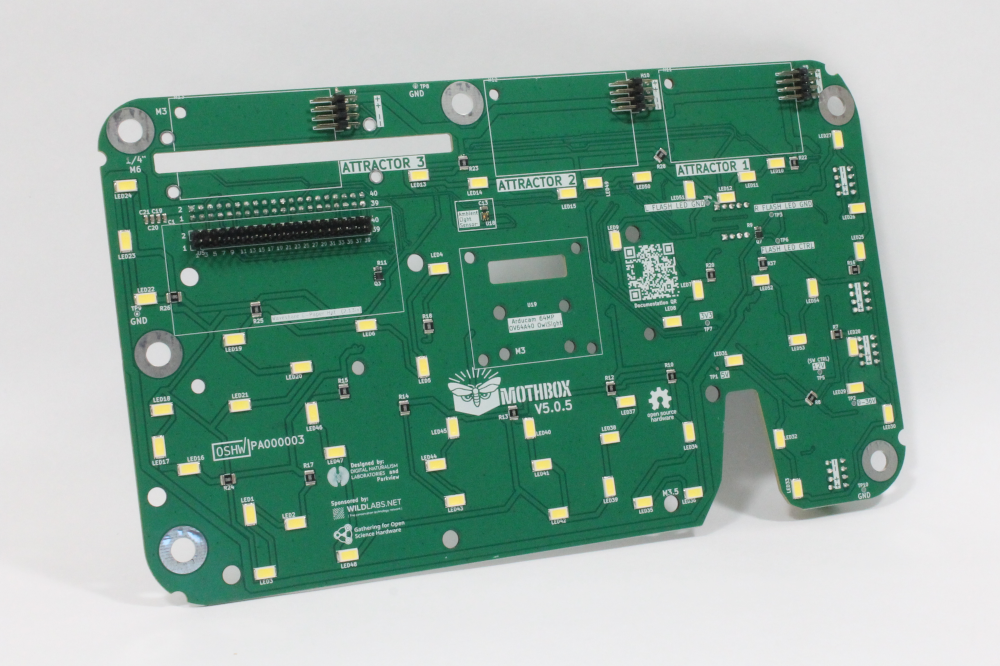

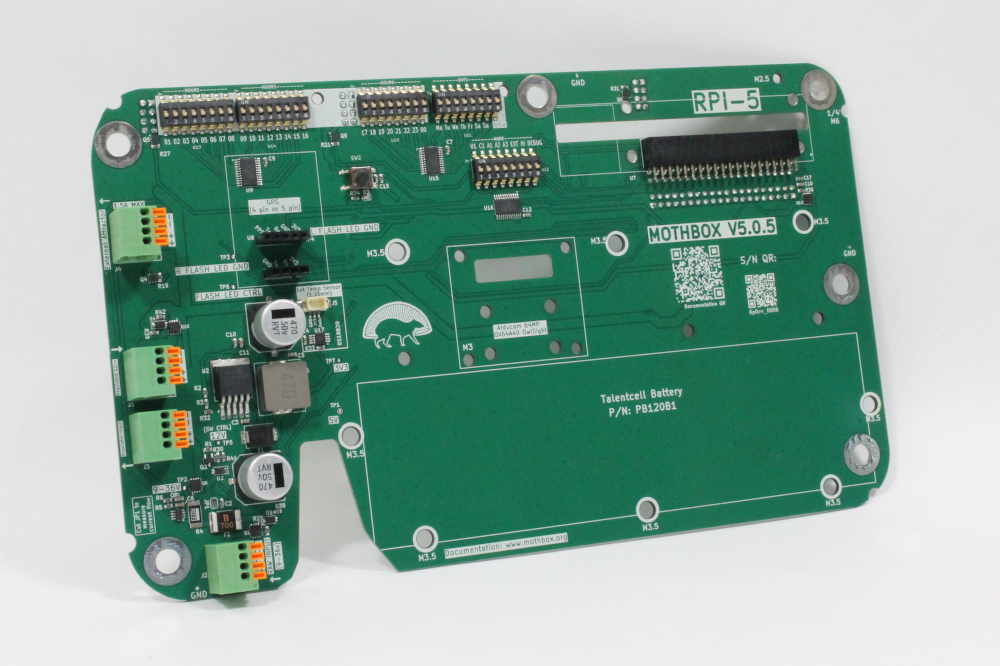

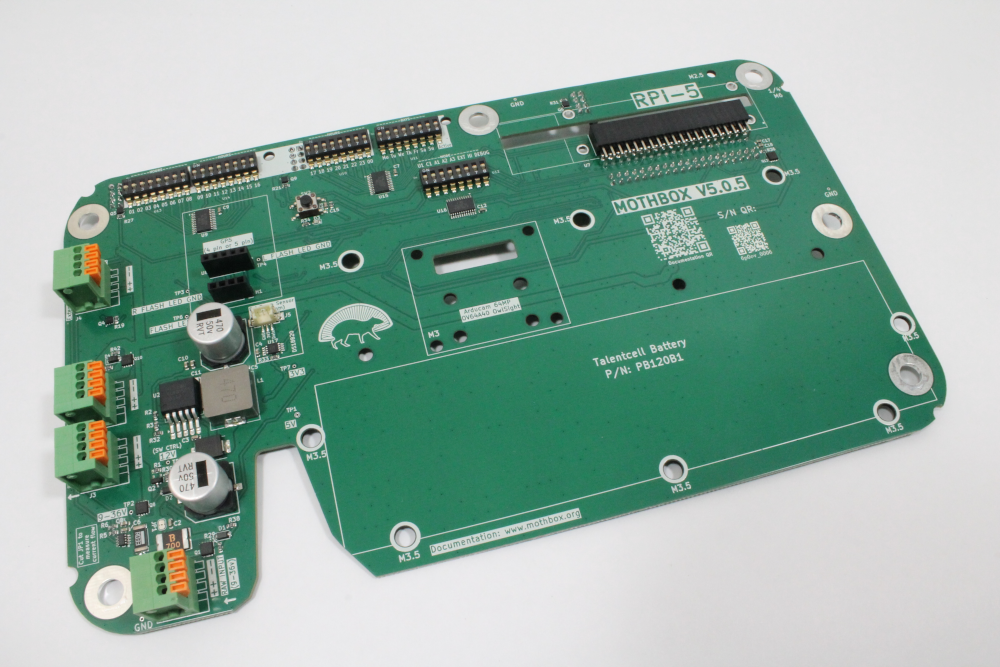

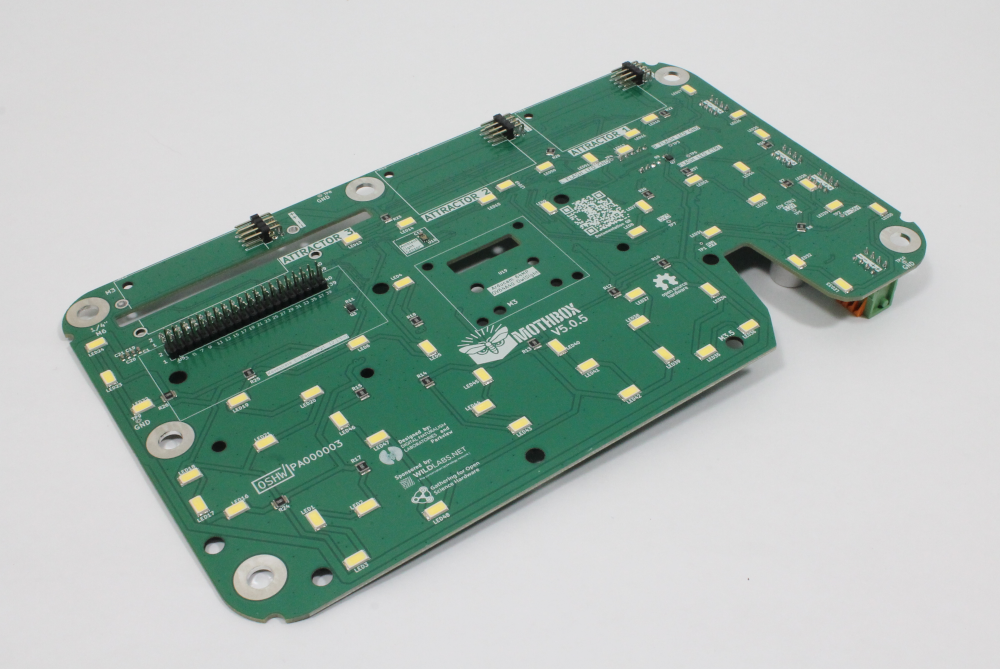

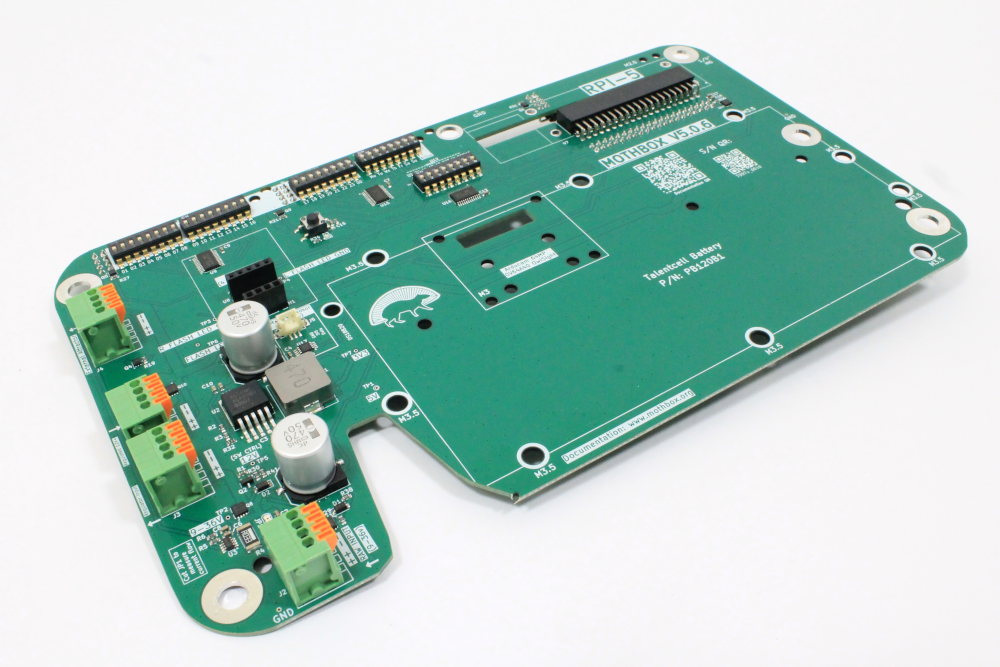

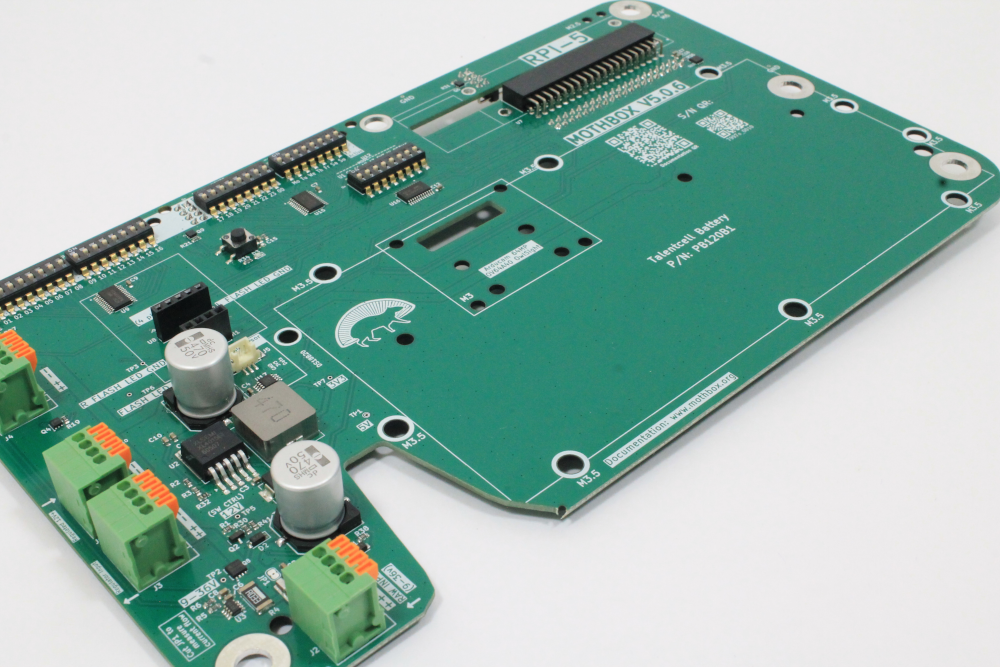

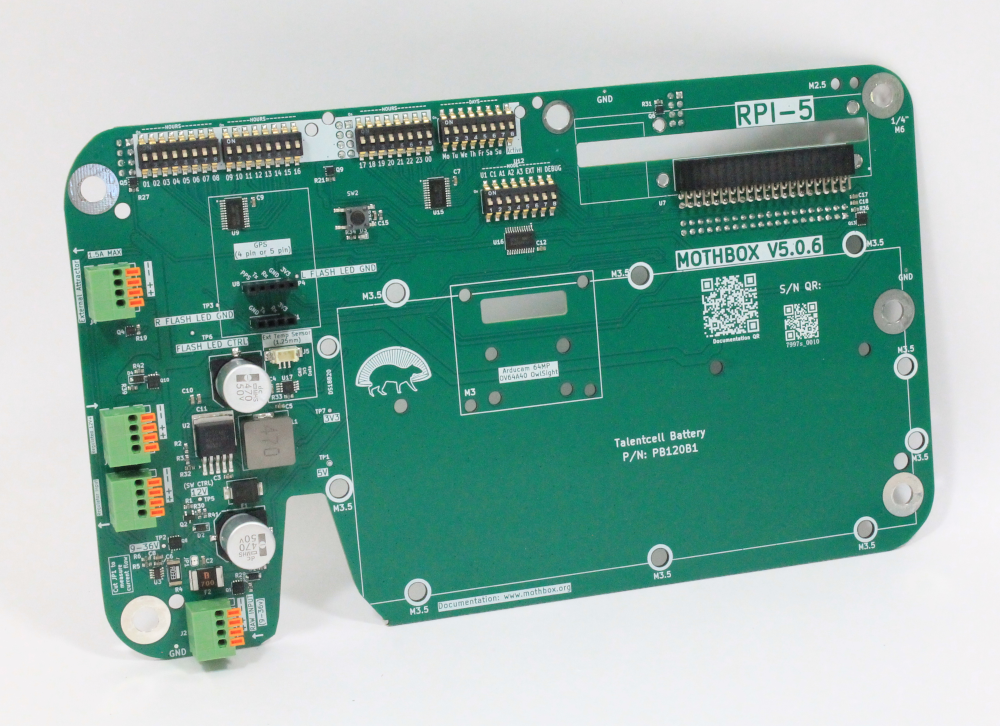

Mothbox Pro PCB

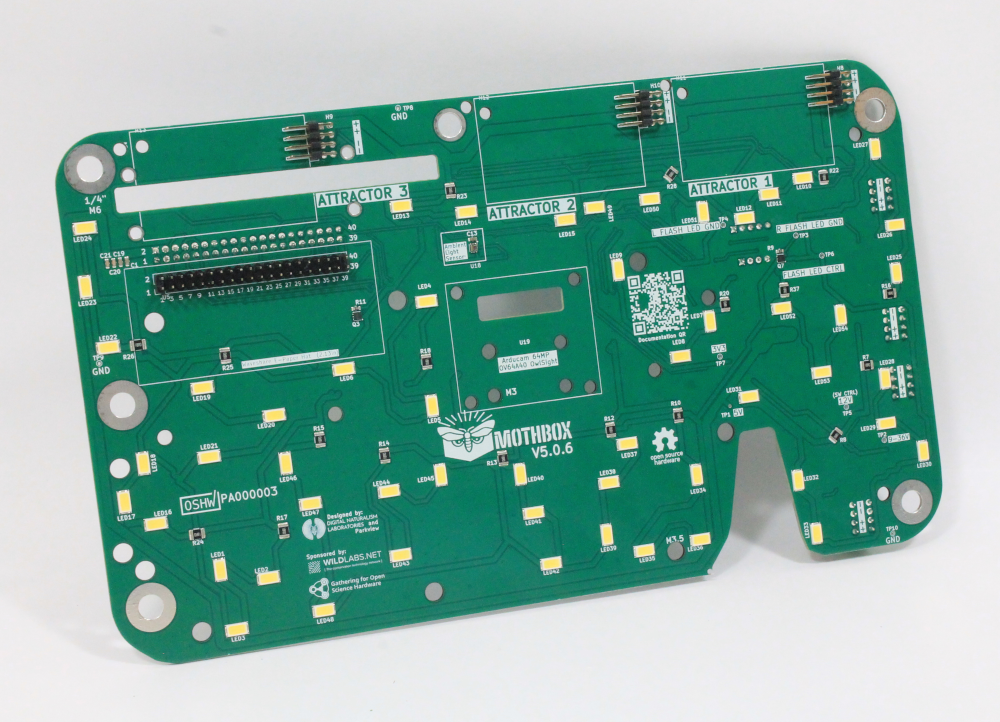

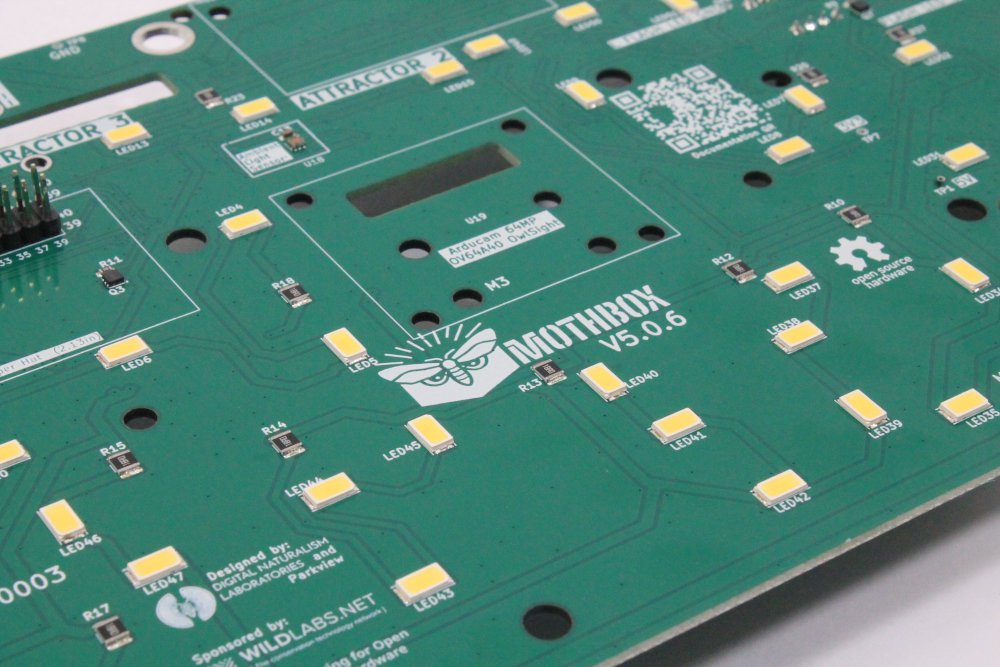

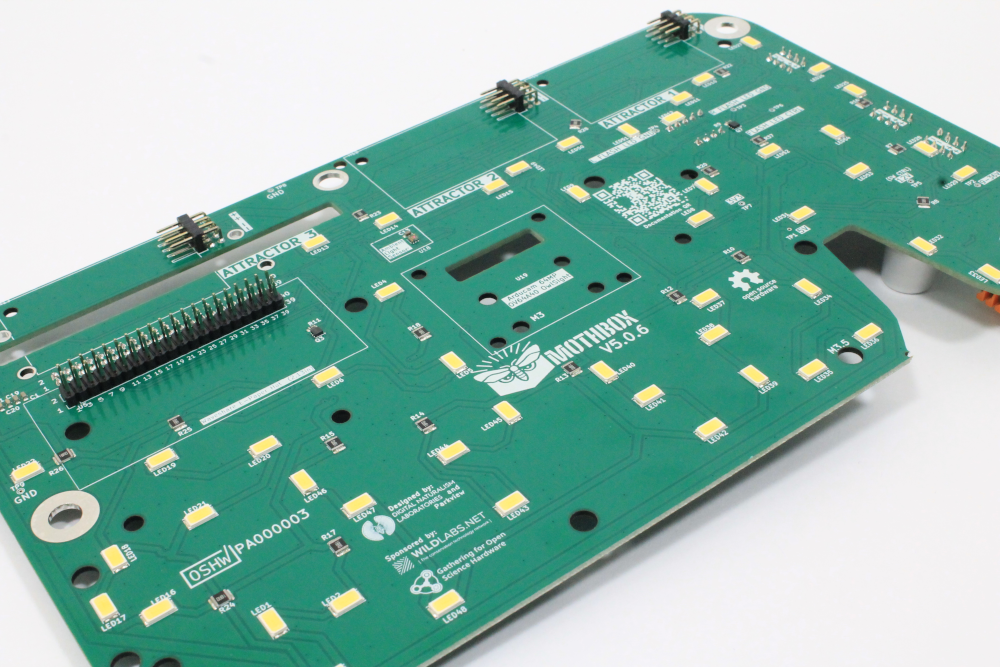

This is the Mothbox Pro mainboard (Raspberry Pi Hat) used for making a Mothbox Pro Automated Insect Monitor. The Mothbox Pro PCB is an open hardware design by Digital Naturalism Labs.

Features:

• Connect up to 3 Mothbeam attractor PCBs with visible or UV LEDs
• Quick connector for Raspberry Pi 5
• Array of bright white LEDs for automated photography
• Mount holes for attaching battery and Arducam high-resolution camera
• Connector for ePaper display
• On-board ambient light sensor and temperature sensor
• Connectors for optional external temperature sensor and/or GPS

• PCB Dimensions: 23.7 cm x 13.9 cm

Documentation: Mothbox Pro PCB

Open Hardware Design Files: GitHub Repository
