Rodeostat HC: High current range

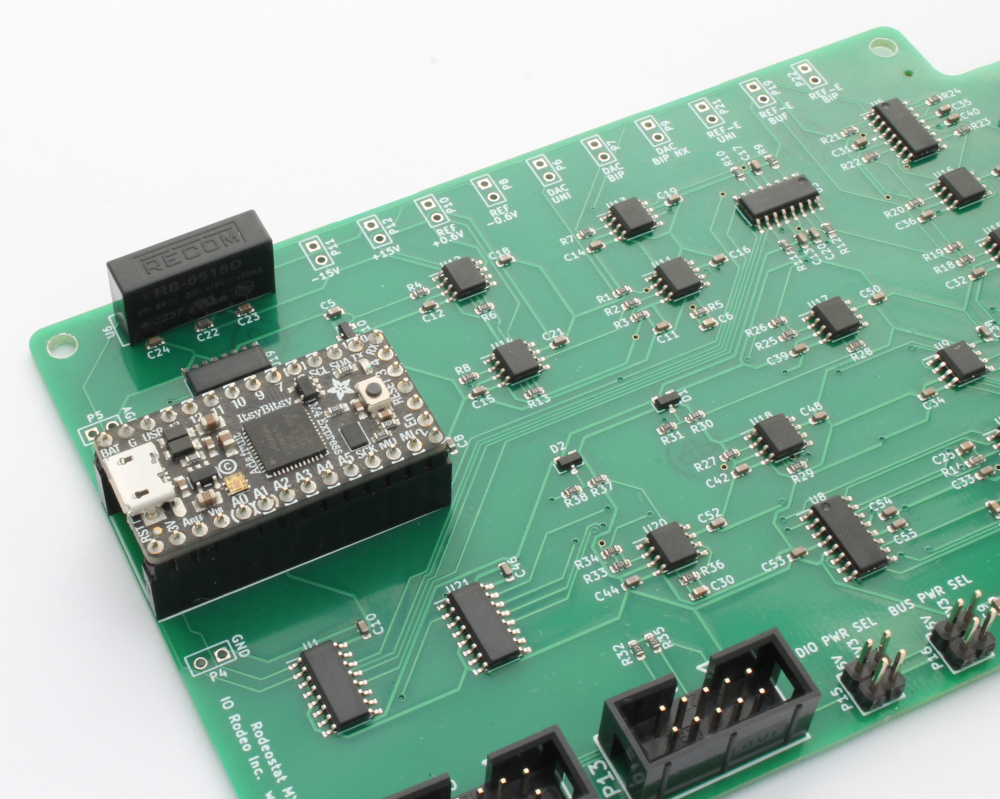

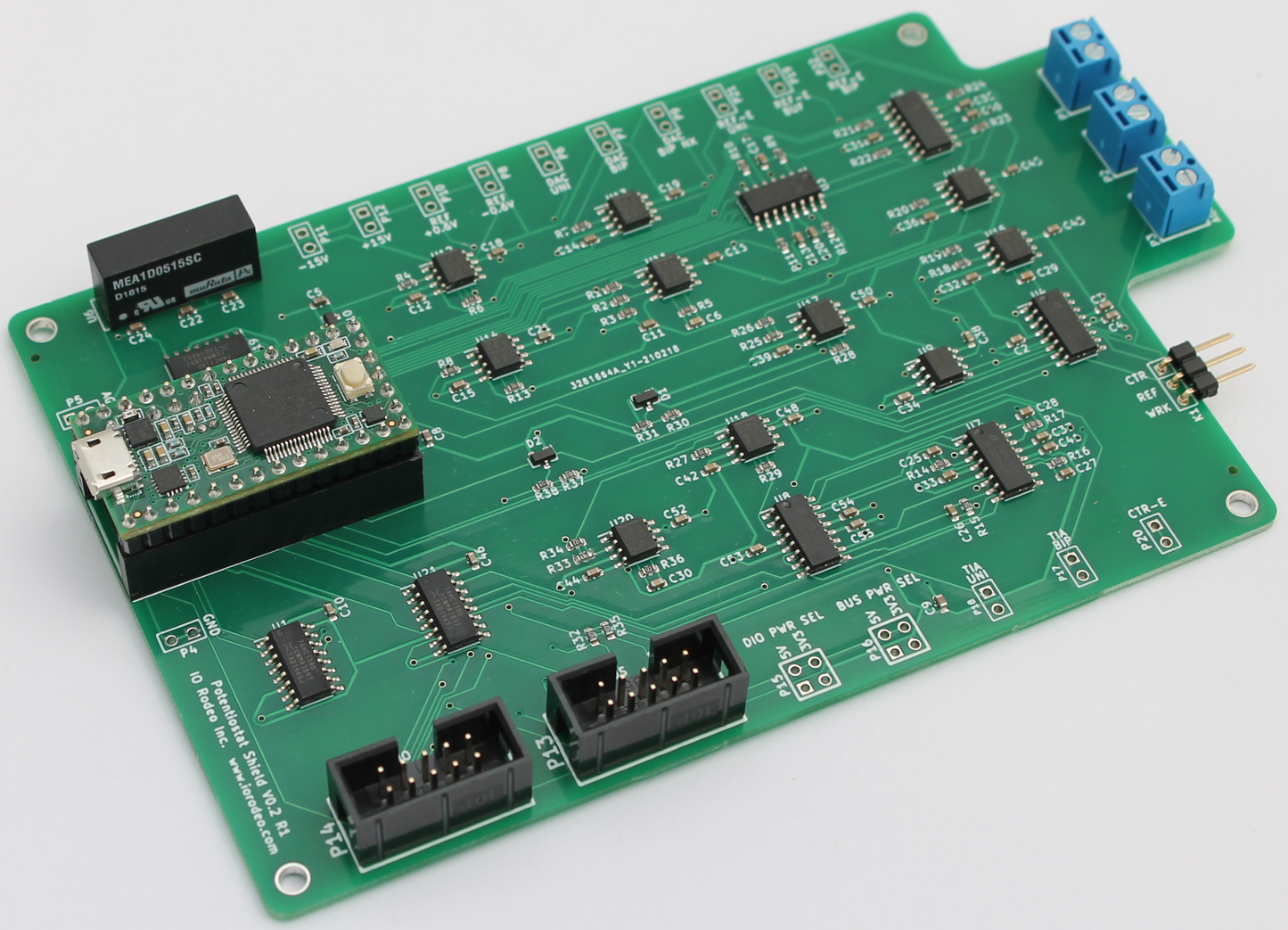

The Rodeostat HC is a higher current range version of the Rodeostat open source potentiostat. It is designed to work with the Adafruit ItsyBitsy M4 Express Board.

The main difference between the Rodeostat vs. Rodeostat HC is the higher current measurement ranges:

• Rodeostat current measurement ranges: +/- 1, 10, 100, 1000 µA
• NEW Rodeostat HC current measurement ranges: +/- 10, 100, 1000, 10,000 µA

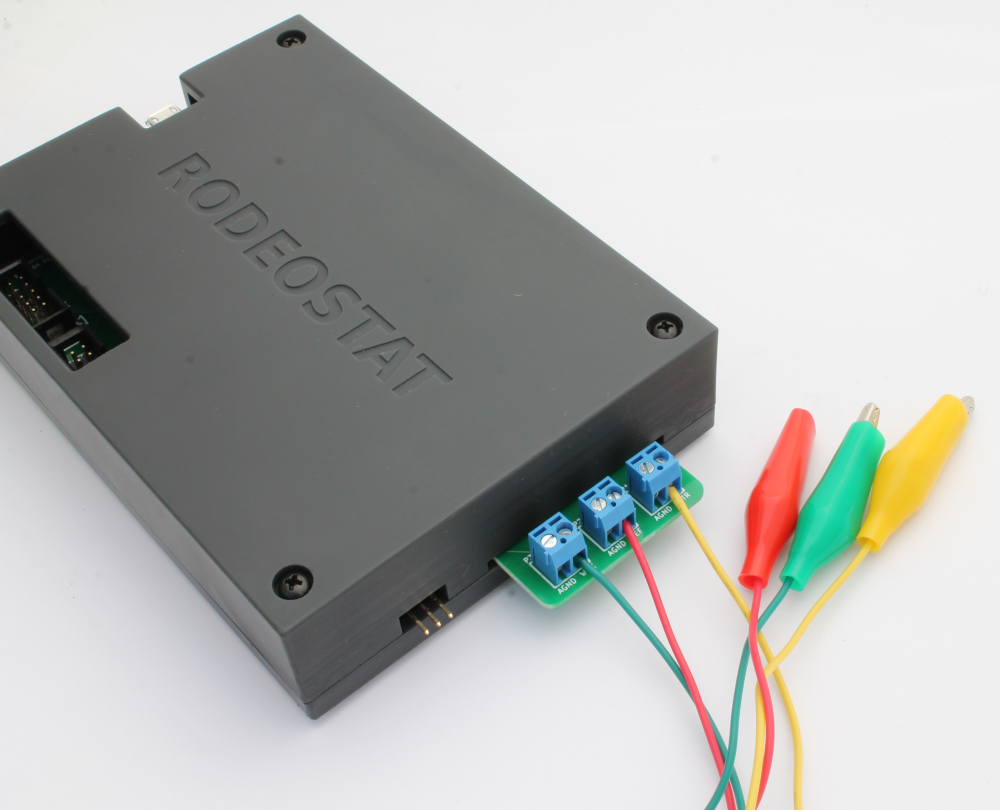

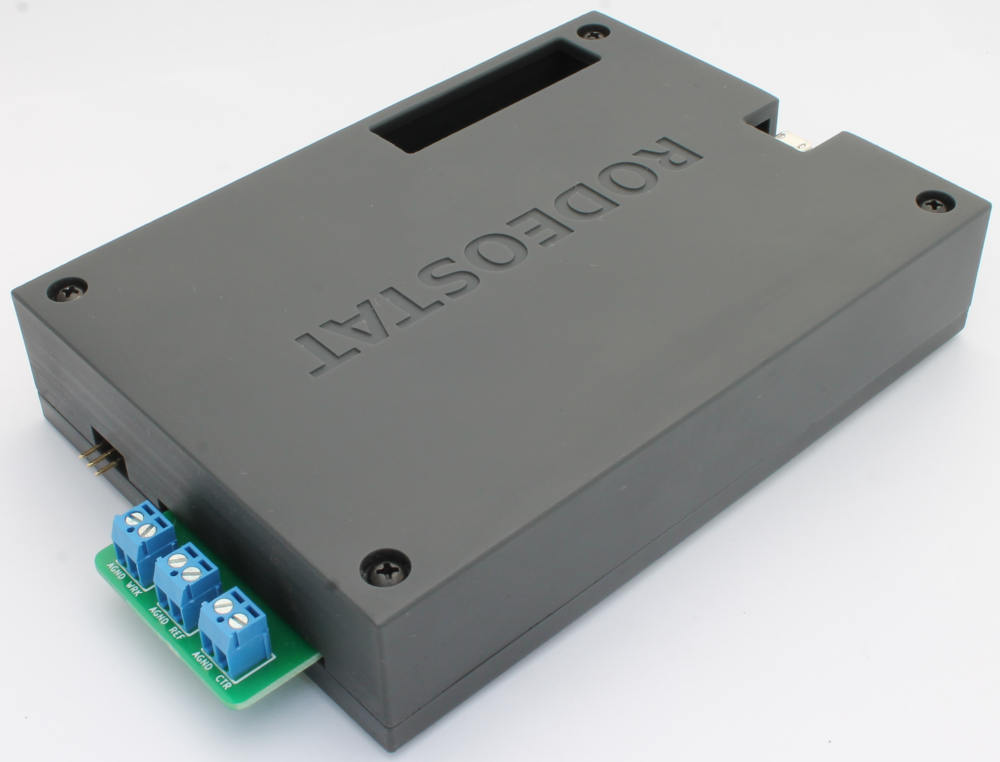

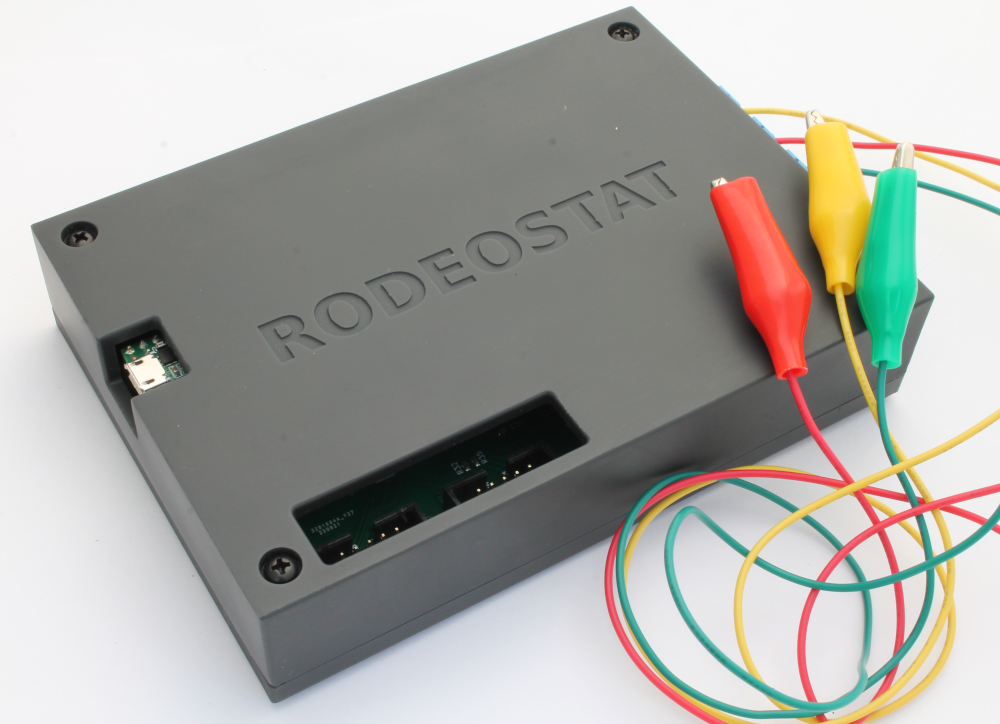

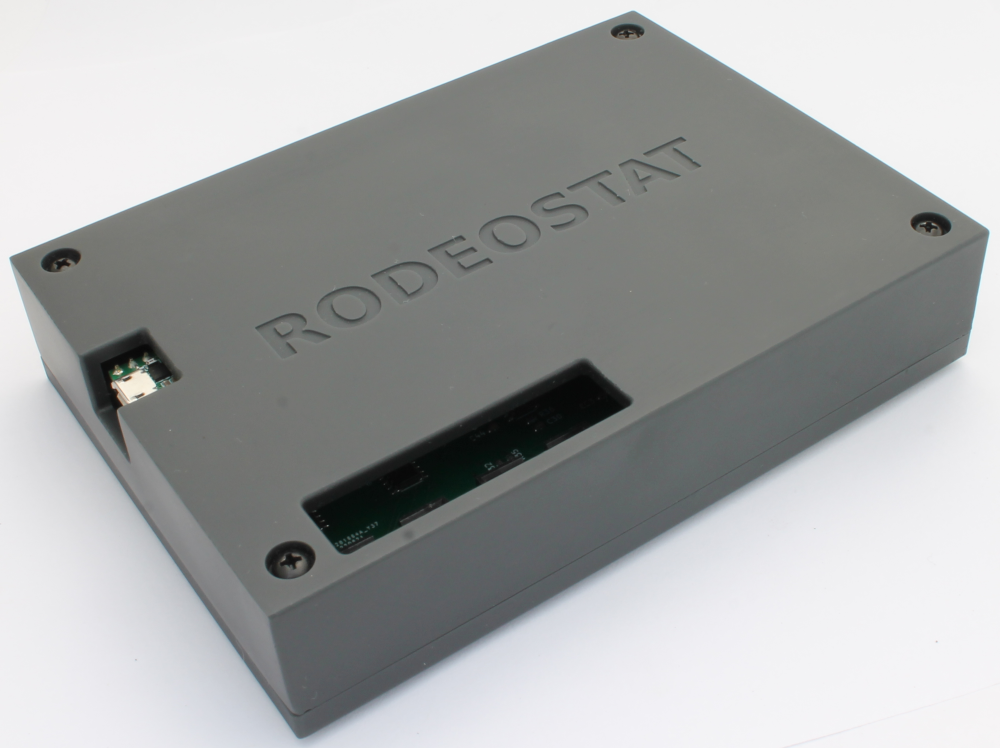

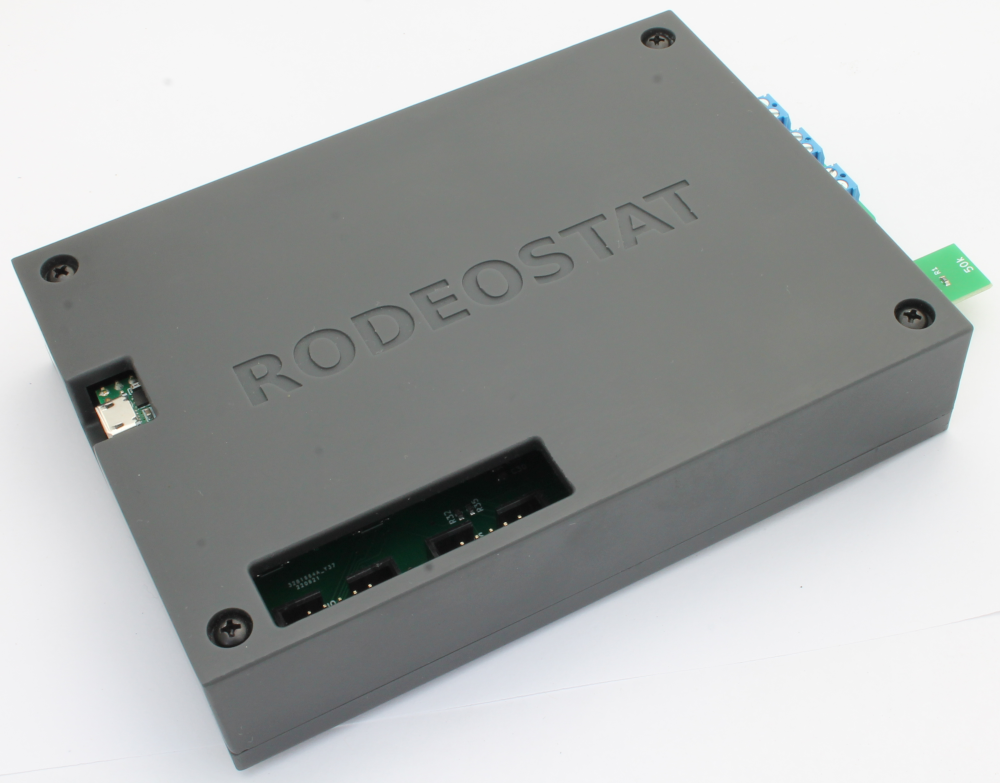

The Rodeostat HC includes a 3D-printed enclosure, pre-programmed ItsyBitsy M4 Express, micro-USB cable, set of 3 alligator clip cables and a 50K dummy cell.

Other features:

• Adjustable ranges,  (+/- 1, 2, 5, 10V) for reference electrode measurements
• Digital switches for software control of electrode connections

Learn More

Visit the Rodeostat Project Site to learn more: https://blog.iorodeo.com/rodeostat-product-guide/

The Rodeostat test and measurement equipment is for research use only.
