Rodeostat SPE adapter: Type A

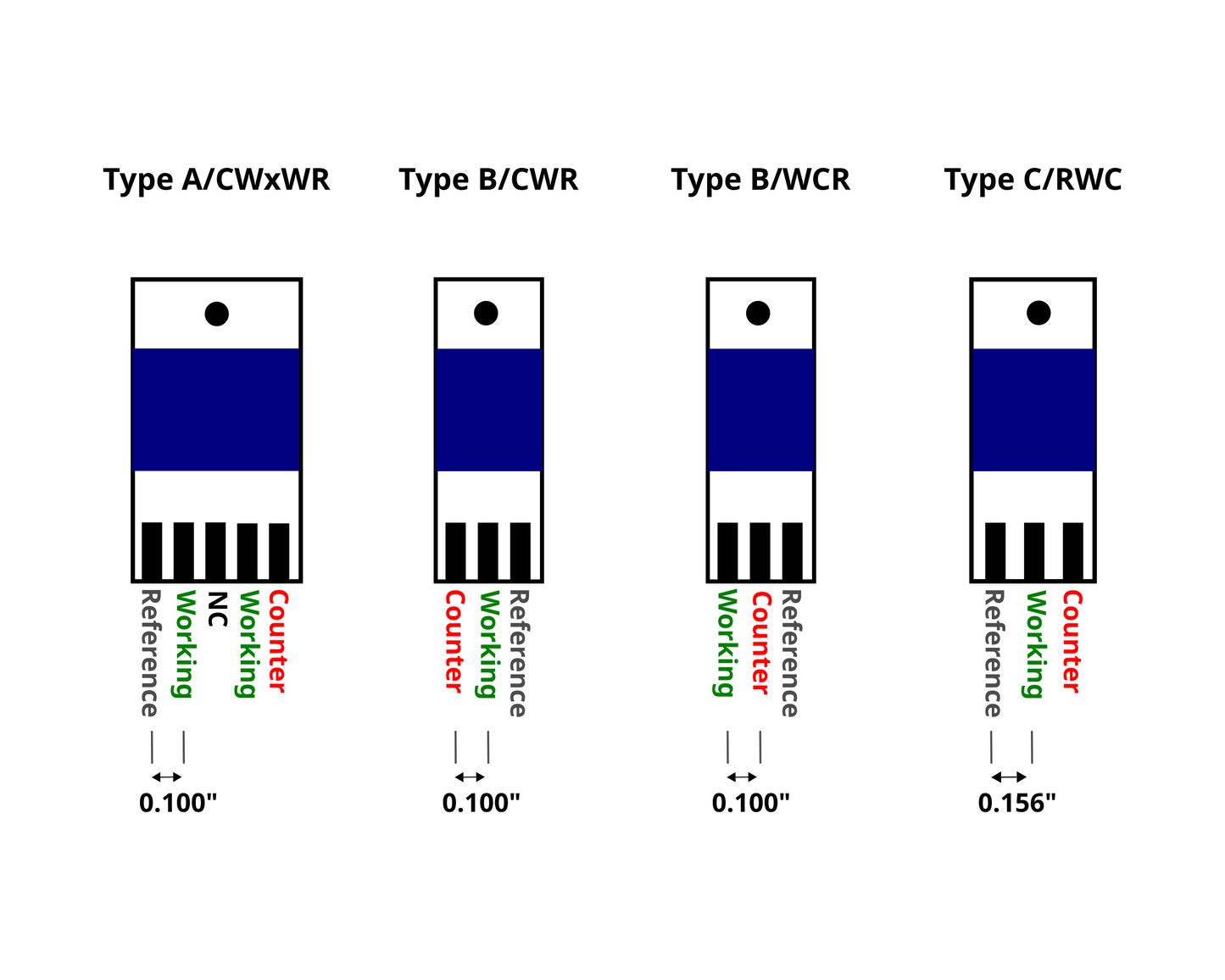

This is an adapter suitable for using with Pine Research carbon screen printed electrodes any electrode or biosensor with a similar configuration. The adapter consists of a 5-position card edge connector with 0.100" spacing. The adapter connects to the Rodeostat potentiostat via a a 12" long ribbon cable. A screen printed electrode is inserted into a slot on the front of the adapter.

Learn more about this product and our other Rodeostat SPE adapters in the Rodestat Product Guide.

Example application

Cyclic voltammetry with a Rodeostat and Pine Research carbon SPE.

Open hardware design files:

• KiCad PCB design: SPE adapter Type A
