Screen printed electrode adapter for Zimmer Peacock electrodes

This is an adapter configured for use with Zimmer Peacock Hypervalue carbon, gold and platinum or 501 carbon screen printed electrodes. They can  or any electrode or biosensor with the following configuration:

• Electrode slot width: 7.8 mm
• Electrode spacing: 0.1"
• Electrode configuration: C/W/R
• Example Application: Cyclic voltammetry with ZP Hypervalue carbon or 501 carbon electrodes

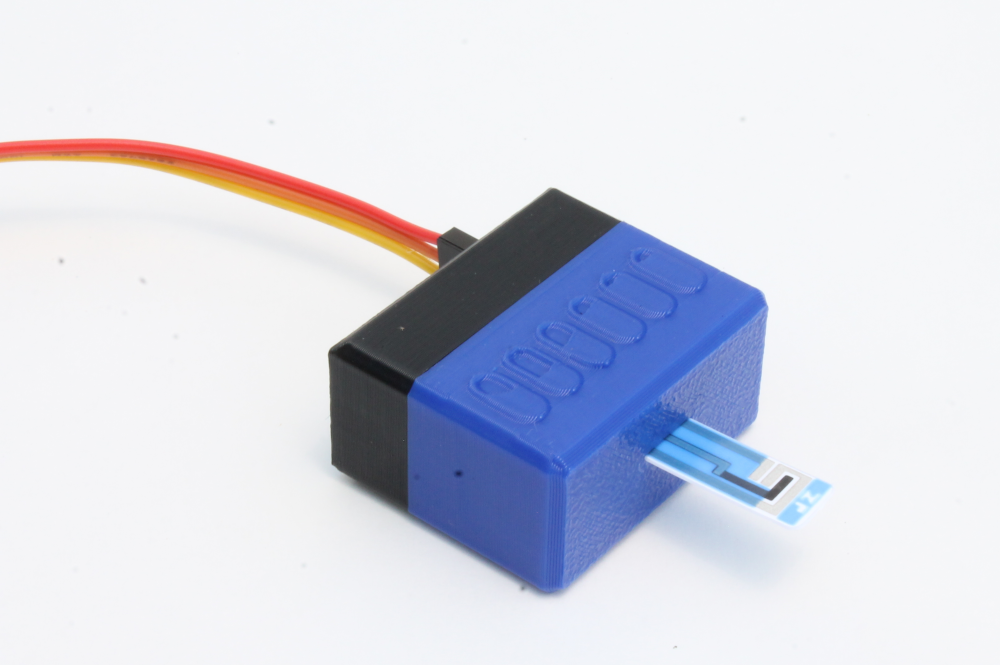

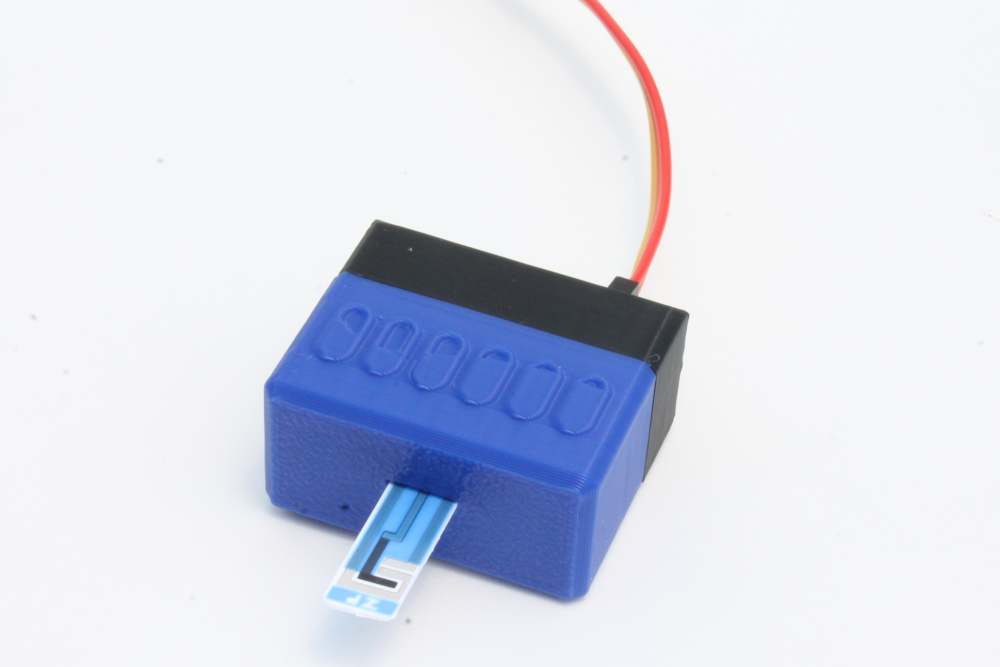

The adapter contains a 3-position card edge connector with 0.1" spacing mounted inside a 3D-printed enclosure. The electrode is inserted into a 7.8 mm x 1.0 mm slot on the front of the adapter.

An internal tab in the adapter secures the electrode firmly in place.

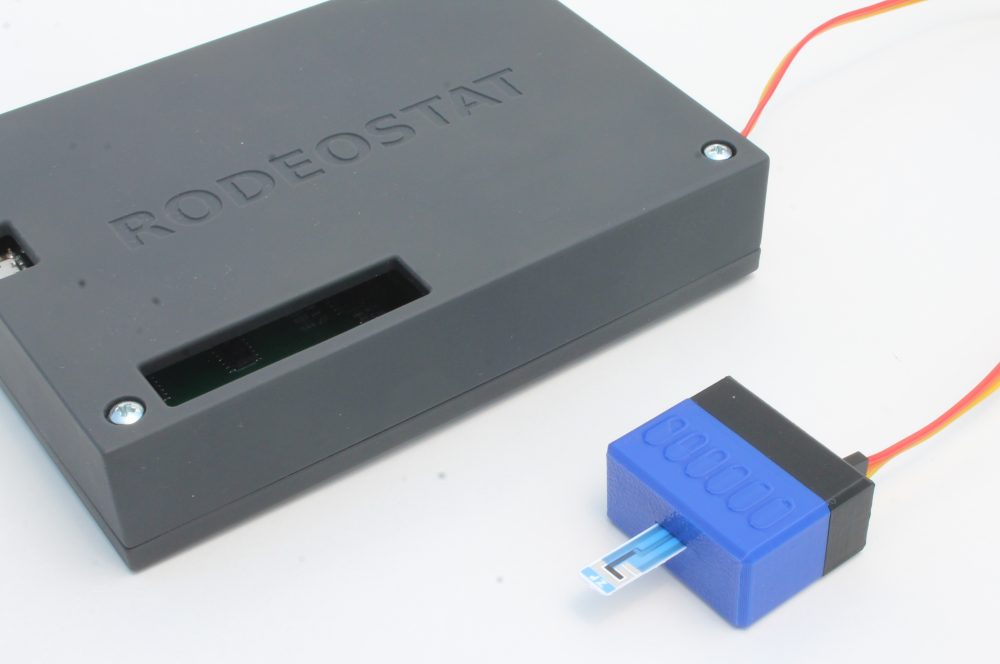

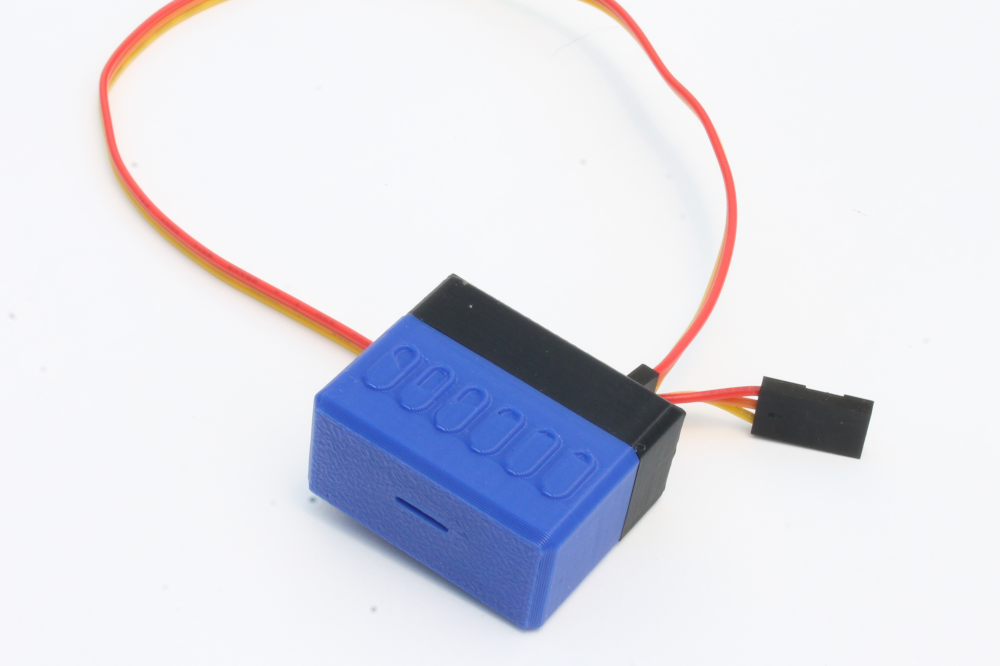

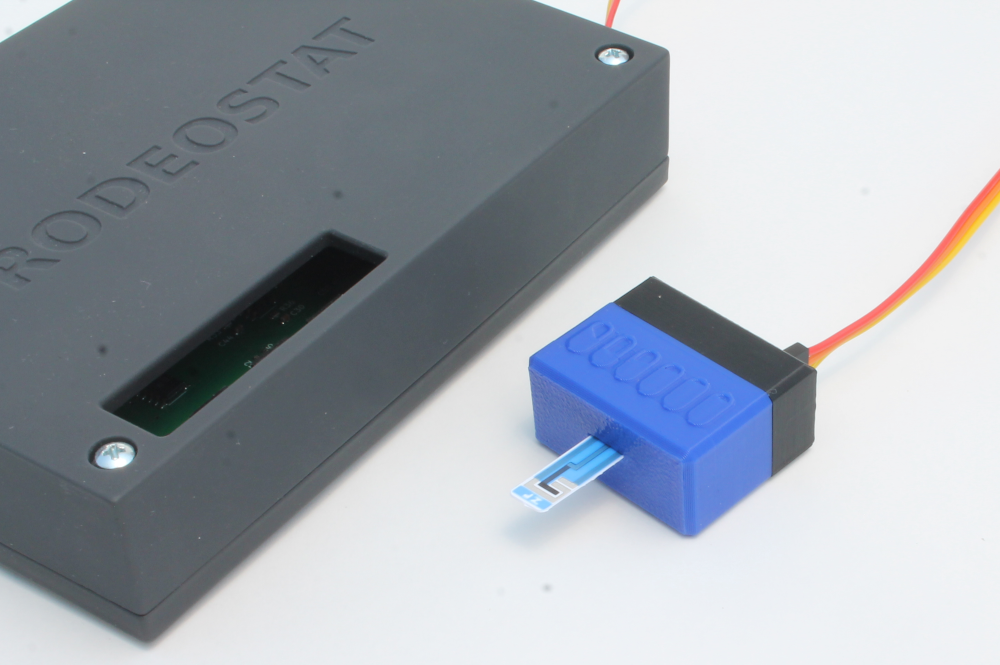

The adapter connects to the Rodeostat potentiostat 3-pin header via a 12" long cable.

Learn more about this product and our other Rodeostat SPE adapters in the Rodestat Product Guide.

Open hardware design files:

• Freecad design: 3D-printed adapter housing
• KiCad PCB design: SPE adapter CWR
