IO Rodeo

430nm LED board

430nm LED board

Regular price $ 7.00 USD
Regular price Sale price $ 7.00 USD
Sale Sold out

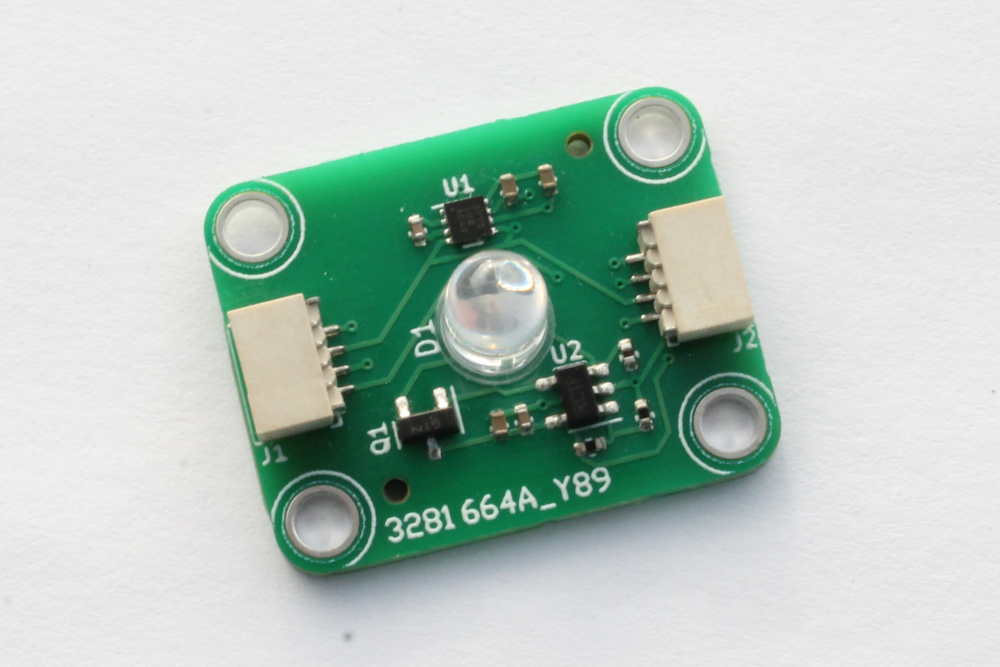

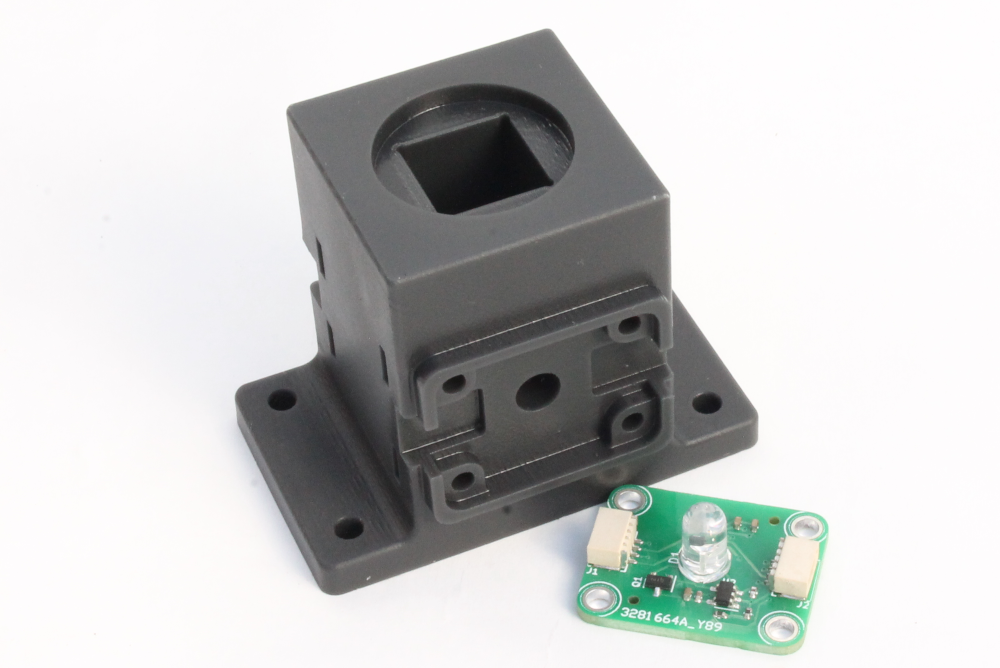

430nm blue light LED board for use with the Open Colorimeter. Use with the through-hole LED cuvette holder.

The 430nm LED board has STEMMA QT for connecting to the Adafruit STEMMA QT TSL2591 High Dynamic Range Digital Light Sensor board via a 4-pin cable and JST SH connectors.

PCB Features

  • Open hardware. KiCad design files @ https://github.com/iorodeo/i_control_led
  • On board voltage regulator enables operation from a 3.3V to 5V  input voltage
  • Active constant current LED driver maintains stable LED current.
  • Dimensions: 25.4 mm x 20 mm x 1.6 mm
  • Two 4-pin JST SH connectors (QWIIC/STEMMA QT)

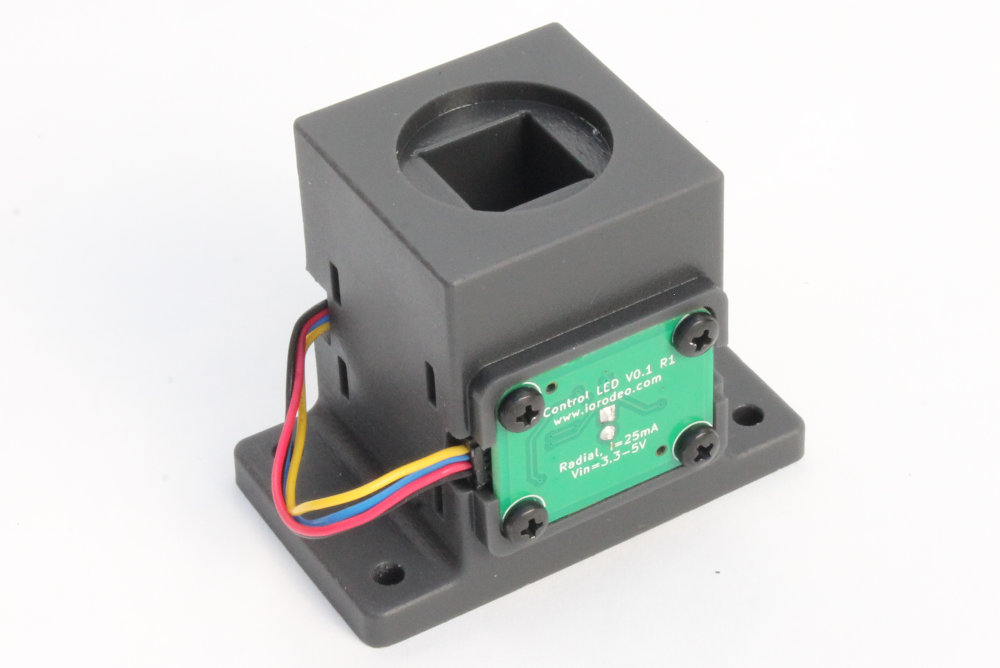

  • Four M2.5 through holes for mounting e.g. to a cuvette holder

LED Features

  • Type: 5mm through-hole LED
  • Wavelength: 430nm
  • LED Luminous Intensity: 400 mcd
  • LED Mfr Part #: SL905BCE
