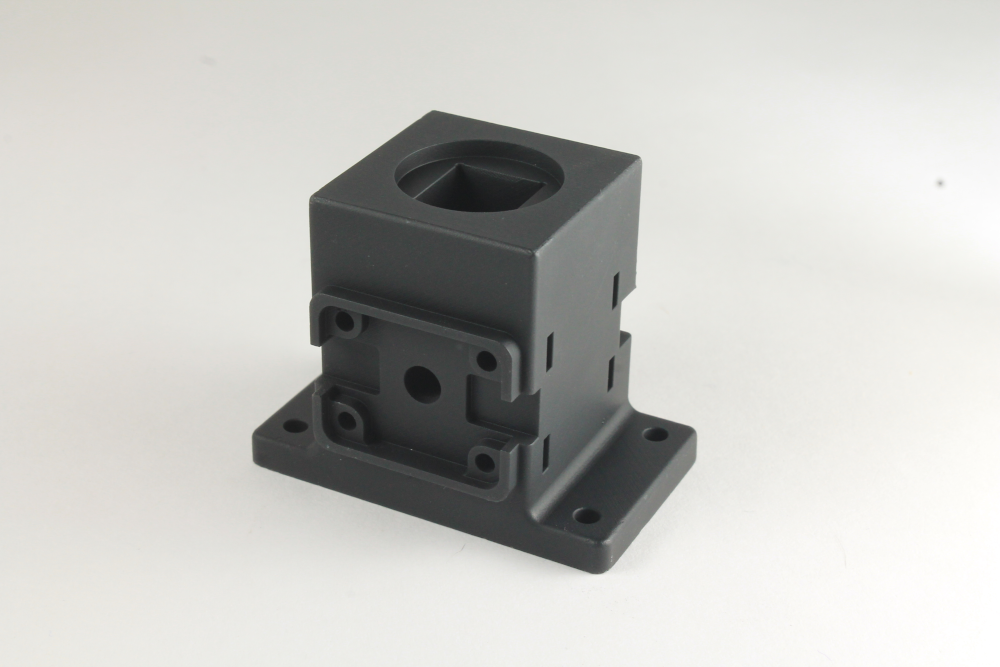

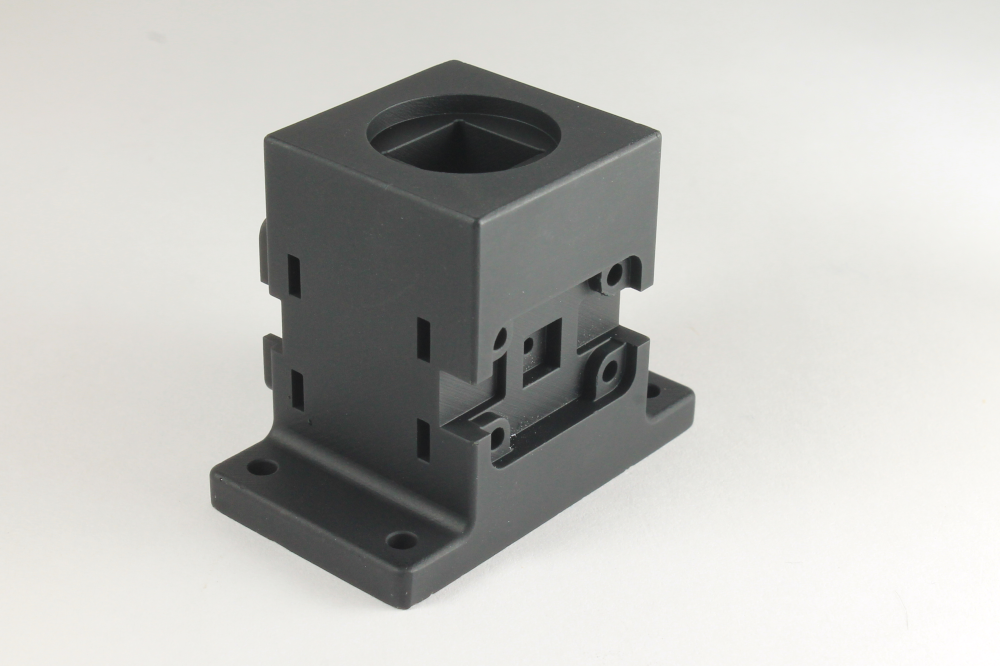

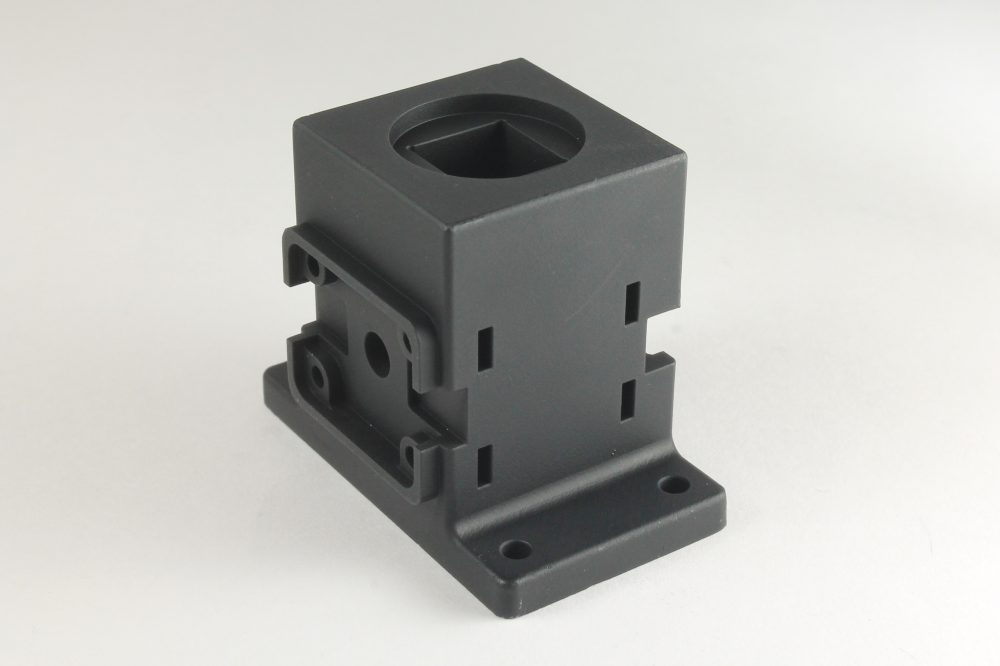

Cuvette holder for radial LED boards

This is a modified version of the Open Colorimeter cuvette holder specifically for using with our radial (3mm or 5mm through-hole) LED boards.

Details

• Material: 3D printed black nylon
• Outer Dimensions: 54 mm (length) x 32 mm (width) x 43.5 mm (height)
• Inner Dimensions: 12.68 mm x 12.68 mm.
• Recessed circular space for a light-blocking cover
• Recessed mounts on either side with tapped M2.5 threads for mounting the LED and light sensor boards
• Base flange with 4 mount holes for mounting to the Open Colorimeter base
• Works with most commonly used cuvettes with dimensions no greater than 12.6 mm x 12.6 mm
